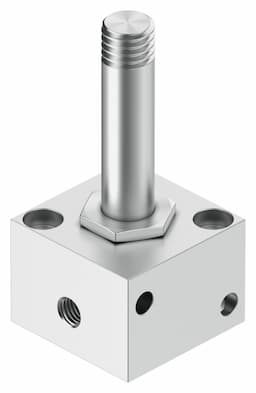

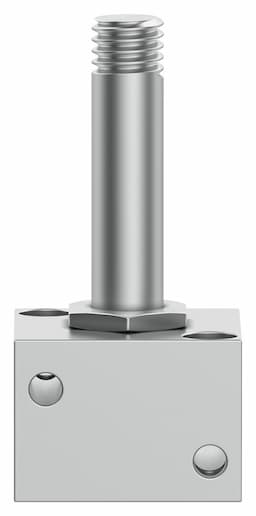

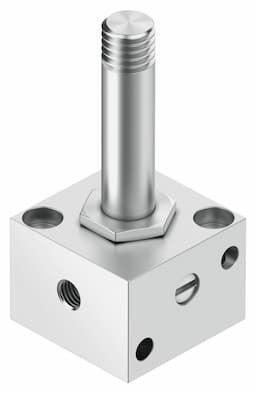

mfh-2-m5
Product ID:8507
Updated: 2026/4/3
Key Features
- 1Ensure precise control with a 2/2-way, closed, monostable function. 2、Achieve efficient operation with 75 l/min flow and electric actuation. 3、Handle diverse applications with a 0 to 8 bar operating pressure range. 4、Rely on durable performance from the poppet seat and spring reset design. 5、Support lubricated operation while meeting LABS (PWIS) compliance standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 2/2, closed, monostable | Actuation type | Electrical |
| Standard nominal flow rate | 75l/min | Pneumatic working port | M5 |
| Operating pressure | 0bar 8bar | Structural design | Plate seat |
| Reset method | Mechanical spring | Nominal width | 1.5mm |
| Exhaust air function | Without flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Detenting |
| Type of control | Direct | Flow direction | Non-reversible |
| Symbol | 00991398 | Switching time off | 5ms |
| On switching time | 6.2ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B2-L |
| Temperature of medium | -15°C 60°C | Ambient temperature | -15°C 40°C |
| Type of mounting | With through-hole | Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 | Manufacturer ID | 4573 |
Specifications may be subject to change without notice
