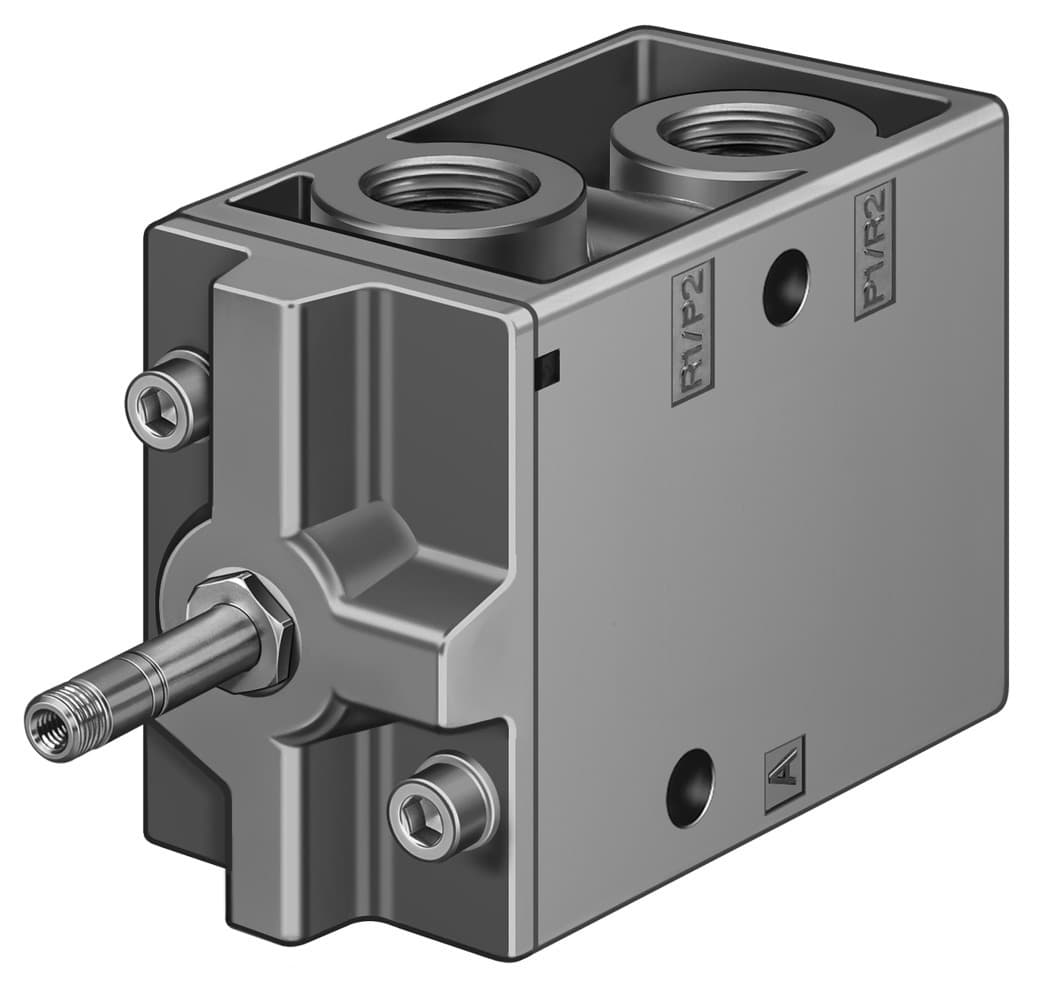

mfh-3-1/2
Product ID:5
Updated: 2026/4/2
Key Features
- 1Deliver a high flow rate of 3700 l/min for demanding applications. 2、Construct with durable die-cast aluminum for corrosion resistance. 3、Mount on manifold rails or through holes for flexible installation. 4、Utilize a soft sealing principle for reliable, low-maintenance operation. 5、Operate reliably from -10°C to 60°C in varied environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, closed, monostable | Actuation type | Electrical |
| Width | 52mm | Standard nominal flow rate | 3700l/min |
| Pneumatic working port | G1/2 | Operating voltage | Via solenoid coil, to be ordered separately |
| Operating pressure | 1.5bar 8bar | Structural design | Plate seat |
| Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
| Degree of protection | IP65 | Nominal width | 14mm |
| Width dimension | 69mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting | Type of control | Pilot-controlled |
| Flow direction | Non-reversible | Symbol | 00991041 |
| Lap | Underlap | b-value | 0.3 |
| Switching time off | 90ms | On switching time | 18ms |
| Max. positive test pulse with 0 signal | 2200μs | Max. negative test pulse on 1 signal | 3700μs |
| Coil characteristics | See solenoid coil, to be ordered separately | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
| Temperature of medium | -10°C 60°C | Ambient temperature | -5°C 40°C |
| Product weight | 1100g | Electrical connection | Via F coil, to be ordered separately |
| Type of mounting | Optionally: On terminal strip With through-hole | Pilot exhaust air port 82 | M5 |
| Pneumatic connection 1 | G1/2 | Pneumatic connection 2 | G1/2 |
| Pneumatic connection 3 | G1/2 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 9857 |
Specifications may be subject to change without notice
