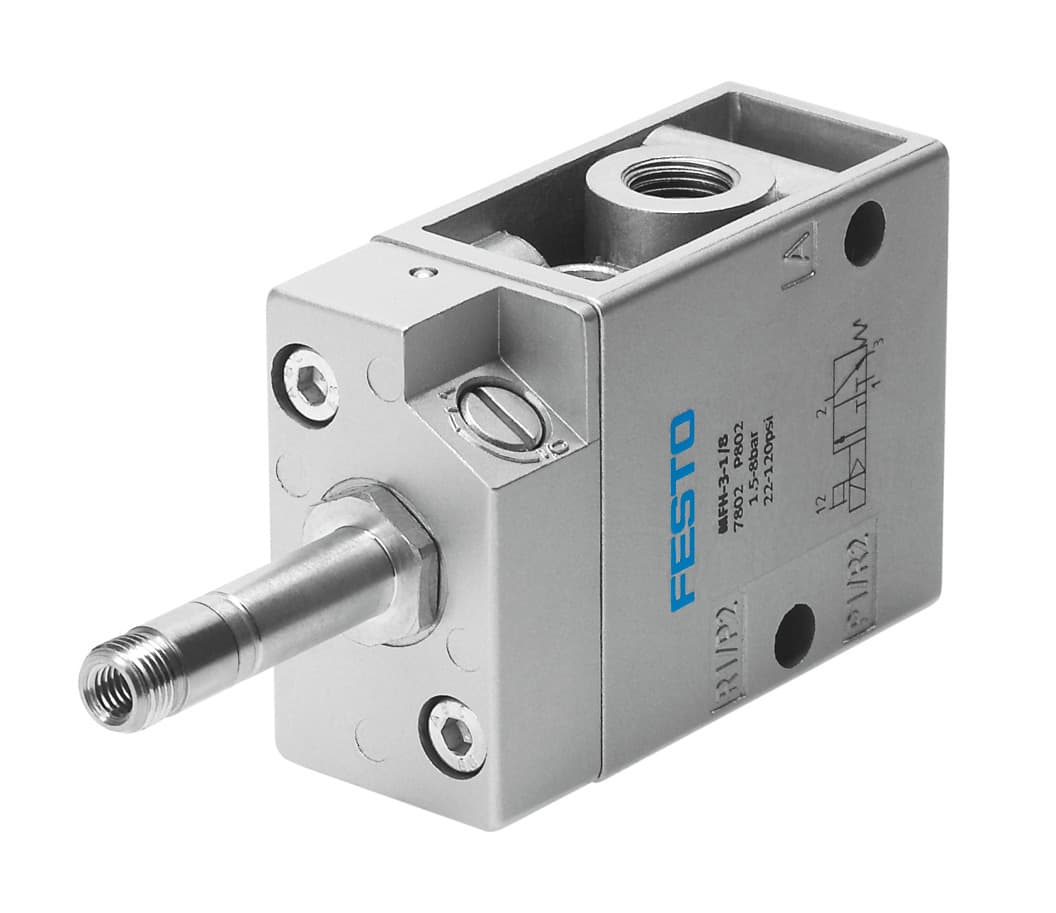

mfh-3-1/8-s-npt
Product ID:723
Updated: 2026/4/3
Key Features
- 1Achieve precise control with a 3/2-way, normally closed solenoid valve. 2、Handle diverse conditions with a 500 l/min flow and -0.95 to 10 bar range. 3、Ensure durability via poppet seat design and IP65 protection. 4、Meet industry standards with UL recognition and ISO 8573-1:2010 compliance. 5、Boost system speed with fast 9 ms on / 33 ms off switching.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, closed, monostable | Actuation type | Electrical |
| Width | 26mm | Standard nominal flow rate | 500l/min |
| Pneumatic working port | 1/8 NPT | Operating voltage | Via solenoid coil, to be ordered separately |
| Operating pressure | -0.95bar 10bar | Structural design | Plate seat |
| Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
| Degree of protection | IP65 | Nominal width | 5mm |
| Width dimension | 27mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Type of control | Pilot-controlled | Pilot air supply port | External |
| Flow direction | Reversible | Symbol | 00992879 |
| Lap | Underlap | Pilot pressure MPa | 0.1MPa 0.8MPa |
| Pilot pressure | 1bar 8bar | Switching time off | 33ms |
| On switching time | 9ms | Max. positive test pulse with 0 signal | 2200μs |
| Max. negative test pulse on 1 signal | 3700μs | Coil characteristics | See solenoid coil, to be ordered separately |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -20°C 60°C | Temperature of medium | -10°C 60°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -5°C 40°C |
| Product weight | 240g | Electrical connection | Via F coil, to be ordered separately |
| Type of mounting | Optionally: On terminal strip With through-hole | Pilot exhaust air port 84 | M5 |
| Pilot air port 12 | 10-32 UNF-2B | Pneumatic connection 1 | 1/8 NPT |
| Pneumatic connection 11 | 1/8 NPT | Pneumatic connection 2 | 1/8 NPT |
| Pneumatic connection 3 | 1/8 NPT | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 10872 |
