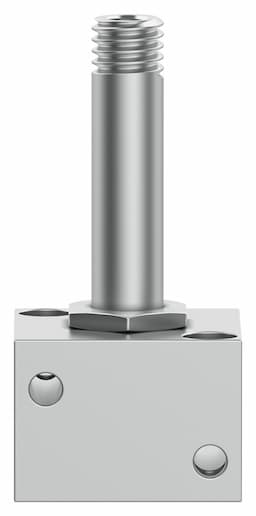

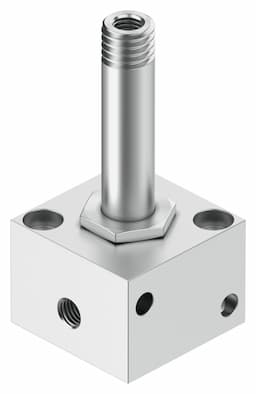

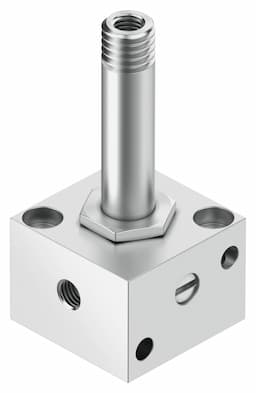

mfh-3-m5
Product ID:8498
Updated: 2026/4/3
Key Features
- 1Ensure precise 3/2-way control of compressed air flows. 2、Achieve fast switching with 16 ms off and 9 ms on times. 3、Deliver a standard nominal flow rate of 58 l/min. 4、Operate reliably within a 0 to 8 bar pressure range. 5、Maintain performance from -15°C to 60°C with ISO compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 3/2, closed, monostable | Actuation type | Electrical |
| Standard nominal flow rate | 58l/min | Pneumatic working port | M5 |
| Operating pressure | 0bar 8bar | Structural design | Plate seat |
| Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
| Nominal width | 1.3mm | Exhaust air function | Without flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Non-detenting | Type of control | Direct |
| Flow direction | Non-reversible | Symbol | 00991308 |
| Switching time off | 16ms | On switching time | 9ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | -15°C 60°C |
| Ambient temperature | -15°C 40°C | Type of mounting | With through-hole |
| Pneumatic connection 1 | M5 | Pneumatic connection 2 | M5 |
| Pneumatic connection 3 | M5 | Manufacturer ID | 4450 |
Specifications may be subject to change without notice
