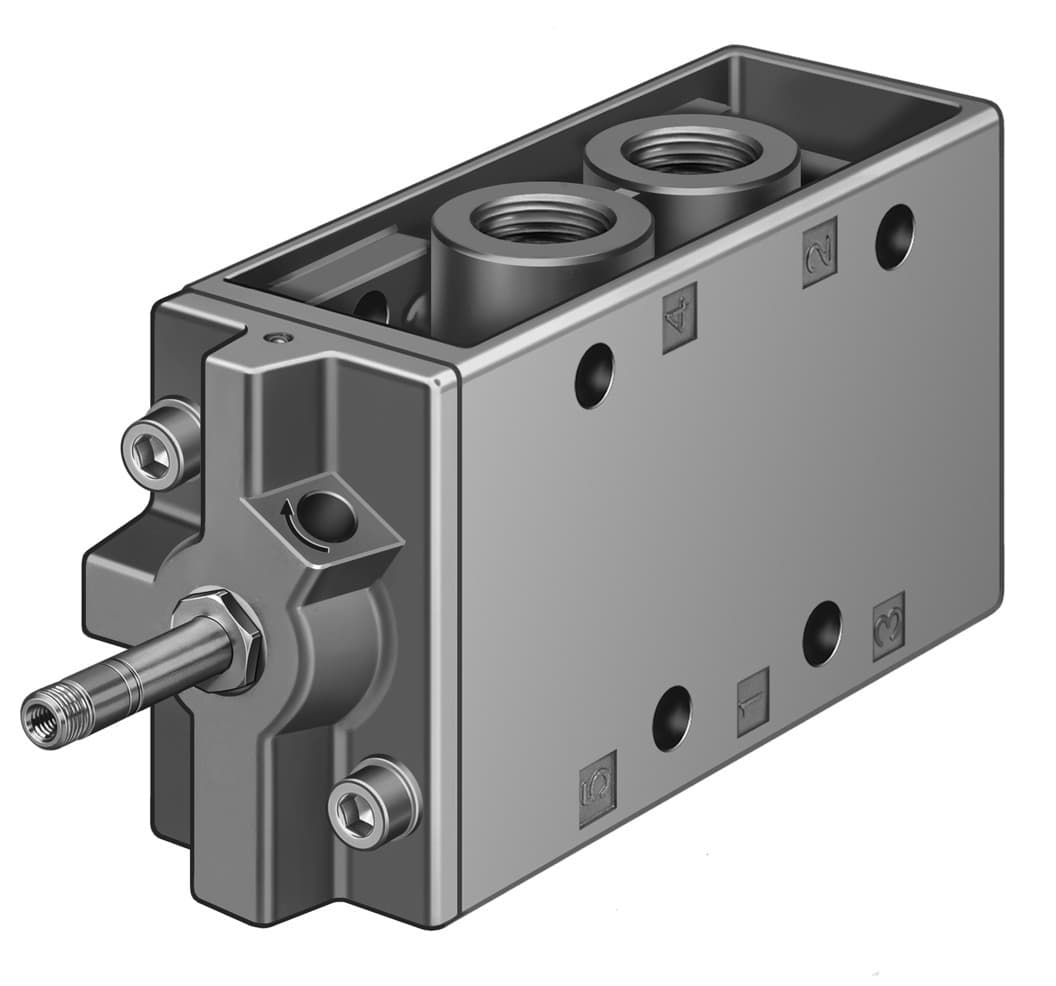

mfh-5-1/2-npt
Product ID:3
Updated: 2026/7/4
Key Features
- 1Ensure reliable pneumatic control with the 5/2-way monostable function.
- 2Achieve precise flow management via electric actuation.
- 3Withstand industrial demands with a compact 52 mm width.
- 4Integrate flexibly using manifold rail or through-hole mounting.
- 5Secure long-term performance with a 5 million cycle B10 rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Width | 52mm | Standard nominal flow rate | 3700l/min |
| Pneumatic working port | 1/2 NPT | Operating voltage | Via solenoid coil, to be ordered separately |
| Operating pressure | 2bar 8bar | Structural design | Plate seat |
| Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
| Degree of protection | IP65 | Nominal width | 14mm |
| Width dimension | 69mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting | Type of control | Pilot-controlled |
| Flow direction | Non-reversible | Symbol | 00991035 |
| Lap | Underlap | b-value | 0.32 |
| Switching time off | 150ms | On switching time | 21ms |
| Max. positive test pulse with 0 signal | 2200μs | Max. negative test pulse on 1 signal | 3700μs |
| Coil characteristics | See solenoid coil, to be ordered separately | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Storage temperature | -20°C 60°C |
| Temperature of medium | -10°C 60°C | Ambient temperature | -5°C 40°C |
| Product weight | 1135g | Electrical connection | Via F coil, to be ordered separately |
| Type of mounting | Optionally: On terminal strip With through-hole | Pilot exhaust air port 84 | M5 |
| Pneumatic connection 1 | 1/2 NPT | Pneumatic connection 2 | 1/2 NPT |
| Pneumatic connection 3 | 1/2 NPT | Pneumatic connection 4 | 1/2 NPT |
| Pneumatic connection 5 | 1/2 NPT | Note on materials | RoHS-compliant |
| Seals material | NBR TPE-U(PU) | Housing material | Die-cast aluminum |
| Manufacturer ID | 9974 |
Specifications may be subject to change without notice
