Key Features

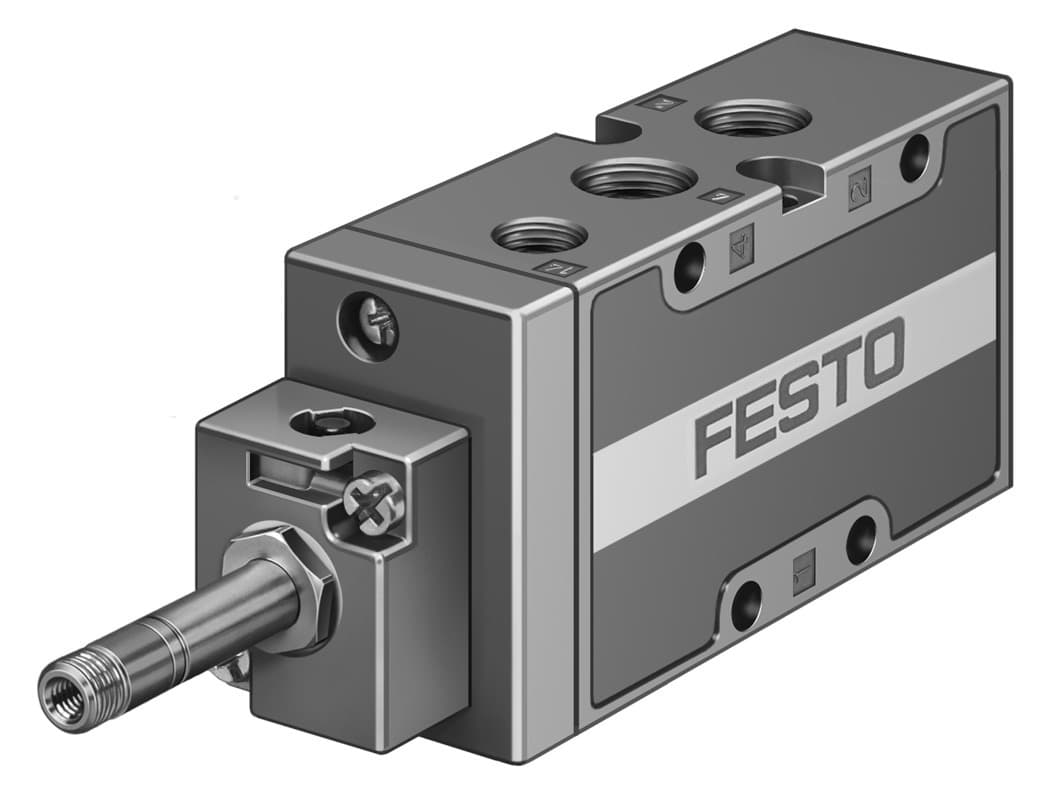

- 1Control pneumatic systems reliably with the 5/2 monostable MFH-5-1/4-B valve.
- 2Achieve a high flow rate of 1,300 liters per minute.
- 3Ensure durability with a robust die-cast aluminum housing construction.
- 4Simplify integration using standard G1/4 pneumatic connections.
- 5Operate reliably in a wide temperature range from -40°C to 60°C.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Width | 32mm | Standard nominal flow rate | 1300l/min |
| Pneumatic working port | G1/4 | Operating pressure | 2bar 10bar |
| Structural design | Plate seat | Reset method | Mechanical spring |
| Nominal width | 7mm | Width dimension | 33mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |
| Flow direction | Non-reversible | Symbol | 00991035 |
| Lap | Underlap | b-value | 0.29 |
| C value | 5.5l/sbar | Max. switching frequency | 3Hz |
| Switching time off | 36ms | On switching time | 12ms |
| Max. positive test pulse with 0 signal | 2200μs | Max. negative test pulse on 1 signal | 3700μs |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -40°C 60°C | Temperature of medium | -10°C 60°C |
| Ambient temperature | -5°C 40°C | Product weight | 300g |
| Electrical connection | Via F coil, to be ordered separately | Type of mounting | Optionally: On PR rail With through-hole |
| Pilot exhaust air port 84 | M5 | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | G1/4 | Pneumatic connection 5 | G1/4 |
| Note on materials | RoHS-compliant | Seals material | NBR TPE-U(PU) |
| Housing material | Die-cast aluminum | Manufacturer ID | 15901 |
Specifications may be subject to change without notice
