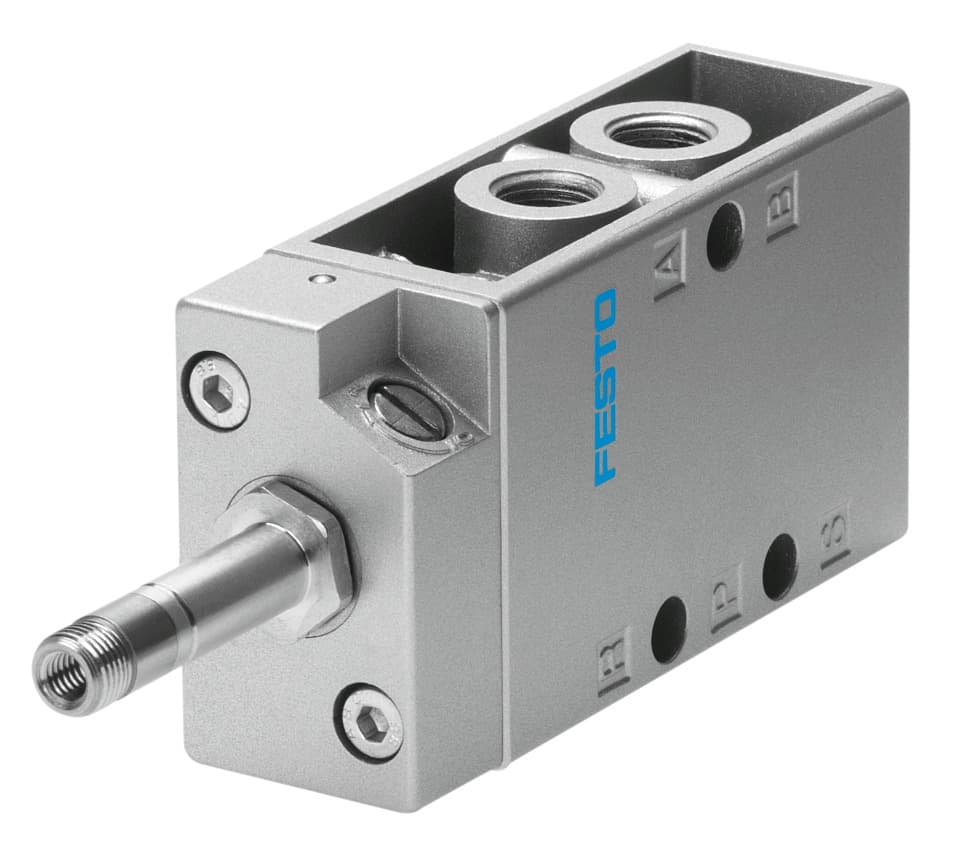

mfh-5-1/8-npt
Product ID:7
Updated: 2026/4/2
Key Features
- 1Optimize cycle times with high flow rates up to 750 l/min. 2、Ensure reliable operation via ISO 15407-1 certification and robust design. 3、Reduce maintenance costs with long service life and easy replacement. 4、Simplify integration using standardized NPT port and mounting interfaces. 5、Accelerate projects with in-stock availability and 24-hour shipping.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Width | 26mm | Standard nominal flow rate | 500l/min |
| Pneumatic working port | 1/8 NPT | Operating voltage | Via solenoid coil, to be ordered separately |
| Operating pressure | 1.8bar 8bar | Structural design | Plate seat |
| Reset method | Mechanical spring | Certification | c UL us - Recognized (OL) |
| Degree of protection | IP65 | Nominal width | 5mm |
| Width dimension | 27mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Detenting | Type of control | Pilot-controlled |
| Flow direction | Non-reversible | Symbol | 00991035 |
| Lap | Underlap | Switching time off | 36ms |
| On switching time | 8ms | Max. positive test pulse with 0 signal | 2200μs |
| Max. negative test pulse on 1 signal | 3700μs | Coil characteristics | See solenoid coil, to be ordered separately |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Storage temperature | -20°C 60°C | Temperature of medium | -10°C 60°C |
| Ambient temperature | -5°C 40°C | Product weight | 270g |
| Electrical connection | Via F coil, to be ordered separately | Type of mounting | Optionally: On PR rail With through-hole |
| Pilot exhaust air port 84 | M5 | Pilot air port 12 | 1/8 NPT |
| Pneumatic connection 1 | 1/8 NPT | Pneumatic connection 2 | 1/8 NPT |
| Pneumatic connection 3 | 1/8 NPT | Pneumatic connection 4 | 1/8 NPT |
| Pneumatic connection 5 | 1/8 NPT | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 9765 |
Specifications may be subject to change without notice
