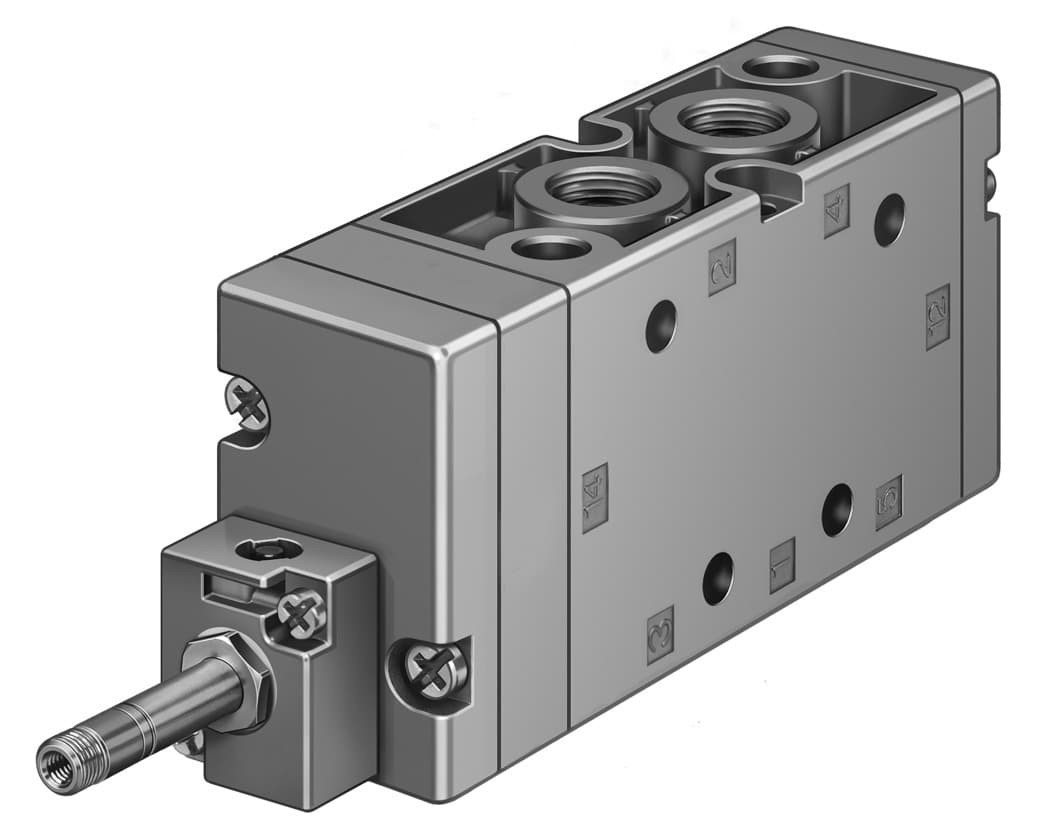

Key Features
- 1Ensure reliable operation in high-performance automation systems. 2、Resist corrosion with durable die-cast aluminum housing and NBR seals. 3、Integrate easily using the standardized G3/8 pneumatic connection. 4、Comply with air quality standards per ISO 8573-1:2010 [7:4:4]. 5、Access a one-stop solution from Festo's automation component range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Width | 40mm | Standard nominal flow rate | 2000l/min |
| Pneumatic working port | G3/8 | Operating pressure | 2bar 10bar |
| Structural design | Piston gate valve | Reset method | Pneumatic spring |
| Nominal width | 12mm | Width dimension | 41mm |
| Exhaust air function | With flow control option | Sealing principle | Soft |
| Mounting position | Any | Manual override | Non-detenting |
| Type of control | Pilot-controlled | Pilot air supply port | Internal |
| Flow direction | Non-reversible | Symbol | 00991023 |
| Lap | Overlap | Max. switching frequency | 3Hz |
| Switching time off | 50ms | On switching time | 25ms |
| Max. positive test pulse with 0 signal | 2200μs | Max. negative test pulse on 1 signal | 3700μs |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -40°C 60°C | Temperature of medium | -10°C 60°C |
| Ambient temperature | -5°C 40°C | Product weight | 630g |
| Electrical connection | Via F coil, to be ordered separately | Type of mounting | Optionally: On PR rail With through-hole |
| Pilot exhaust air port 84 | M5 | Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 | Pneumatic connection 3 | G3/8 |
| Pneumatic connection 4 | G3/8 | Pneumatic connection 5 | G3/8 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 14946 |
Specifications may be subject to change without notice
