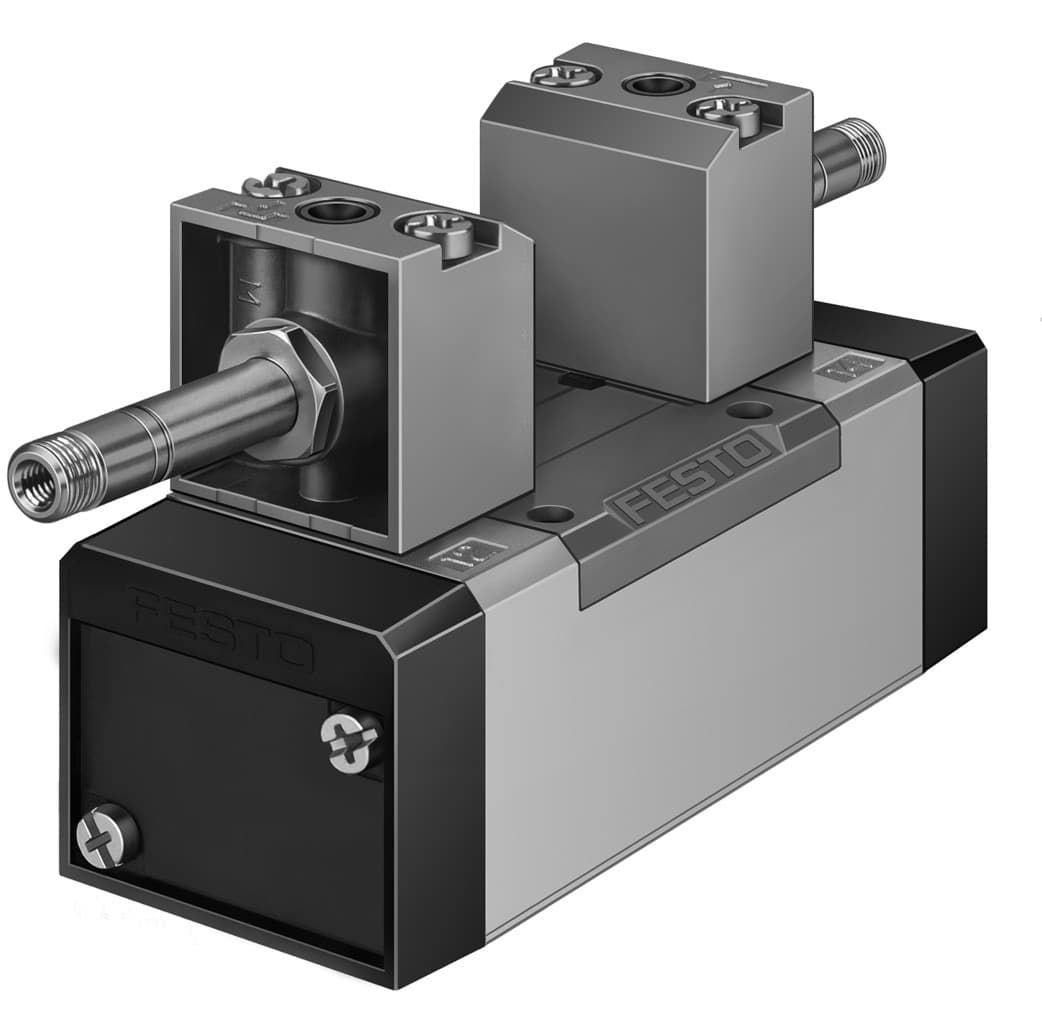

mfh-5/3b-d-1-c
Product ID:2210
Updated: 2026/4/3
Key Features
- 1Deliver reliable 5/3 pressurized function for efficient operation. 2、Provide precise electrical actuation for accurate pneumatic control. 3、Ensure high flow capacity with 1,200 l/min nominal rate. 4、Feature a robust piston gate and spring reset design. 5、Operate reliably across a wide -10°C to 60°C temperature range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/3, pressurized | Actuation type | Electrical |
| Width | 42mm | Standard nominal flow rate | 1200l/min |
| Pneumatic working port | Sub-base, size 1 according to ISO 5599-1 G1/4 | Operating voltage | Via solenoid coil, to be ordered separately |
| Operating pressure | 3bar 10bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Maritime classification | See certificate |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | Certificate issuing authority | DNV-TAA000032X |
| Degree of protection | IP65 | Nominal width | 8mm |
| Width dimension | 43mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Conforms to standard | ISO 5599-1 | Manual override | Detenting via accessory Non-detenting |
| ISO code | 158 | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991083 | Lap | Overlap |
| Switching time off | 36ms | On switching time | 18ms |
| Max. positive test pulse with 0 signal | 2200μs | Max. negative test pulse on 1 signal | 3700μs |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 | Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
| Noise level | 85dB(A) | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C 40°C | Product weight | 520g |
| Electrical connection | Via F coil, to be ordered separately | Type of mounting | On sub-base With through-hole |
| Pilot air port 12 | Sub-base, size 1 as per ISO 5599-1 | Pilot air port 14 | Sub-base, size 1 as per ISO 5599-1 |
| Pneumatic connection 1 | Sub-base, size 1 as per ISO 5599-1 | Pneumatic connection 2 | Sub-base, size 1 as per ISO 5599-1 |
| Pneumatic connection 3 | Sub-base, size 1 as per ISO 5599-1 | Pneumatic connection 4 | Sub-base, size 1 as per ISO 5599-1 |
| Pneumatic connection 5 | Sub-base, size 1 as per ISO 5599-1 | Note on materials | RoHS-compliant |
| Seals material | HNBR NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 150984 |
