mfh-5-pk-3
Product ID:8497
Updated: 2026/4/3
Key Features
- 1Deliver precise 5/2-way monostable control for industrial applications. 2、Achieve a 105 L/min flow rate for medium to high-demand systems. 3、Ensure reliable operation with soft-sealing NBR poppet seat design. 4、Install flexibly using sub-base, frame, or through-hole mounting options. 5、Meet RoHS and VDMA standards for compliant pneumatic control.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Standard nominal flow rate | 105l/min |
| Pneumatic working port | PK-3 | Operating pressure | 3bar 8bar |
| Structural design | Plate seat | Nominal width | 2.5mm |

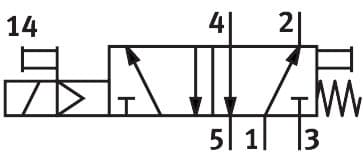

| Sealing principle | Soft | Symbol | 00991435 |
| Switching time off | 22ms | On switching time | 10ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Ambient temperature | -5°C 40°C |
| Product weight | 270g | Type of mounting | Optionally: On sub-base On mounting frame With through-hole |
| Pneumatic connection 1 | PK-3 | Pneumatic connection 2 | PK-3 |
| Pneumatic connection 3 | PK-3 | Pneumatic connection 4 | PK-3 |
| Pneumatic connection 5 | PK-3 | Note on materials | RoHS-compliant |
| Material of sub-base | Aluminum Anodized | Seals material | NBR |
| Housing material | Aluminum Anodized | Manufacturer ID | 4448 |
Specifications may be subject to change without notice
