mfh-5-pk-3-l
Product ID:795
Updated: 2026/4/3
Key Features
- 1Control compressed air reliably with a 5/2-way monostable function. 2、Minimize leakage using a poppet seat and soft sealing principle. 3、Ensure durability with anodized aluminum construction and NBR seals. 4、Achieve fast response with 14 ms on and 22 ms off switching times. 5、Integrate easily into various setups with multiple mounting options.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|

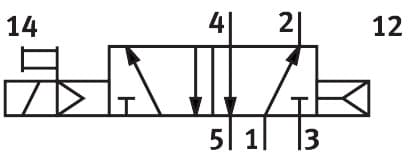

| Valve function | 5/2, monostable | Standard nominal flow rate | 105l/min |
| Pneumatic working port | PK-3 | Operating pressure | 1.5bar 8bar |
| Structural design | Plate seat | Nominal width | 2.5mm |
| Sealing principle | Soft | Symbol | 00991049 |
| Switching time off | 22ms | On switching time | 14ms |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Ambient temperature | -5°C 40°C |
| Product weight | 270g | Type of mounting | Optionally: On sub-base On mounting frame With through-hole |
| Pneumatic connection 1 | PK-3 | Pneumatic connection 2 | PK-3 |
| Pneumatic connection 3 | PK-3 | Pneumatic connection 4 | PK-3 |
| Pneumatic connection 5 | PK-3 | Note on materials | RoHS-compliant |
| Material of sub-base | Aluminum Anodized | Seals material | NBR |
| Housing material | Aluminum Anodized | Manufacturer ID | 11546 |
Specifications may be subject to change without notice
