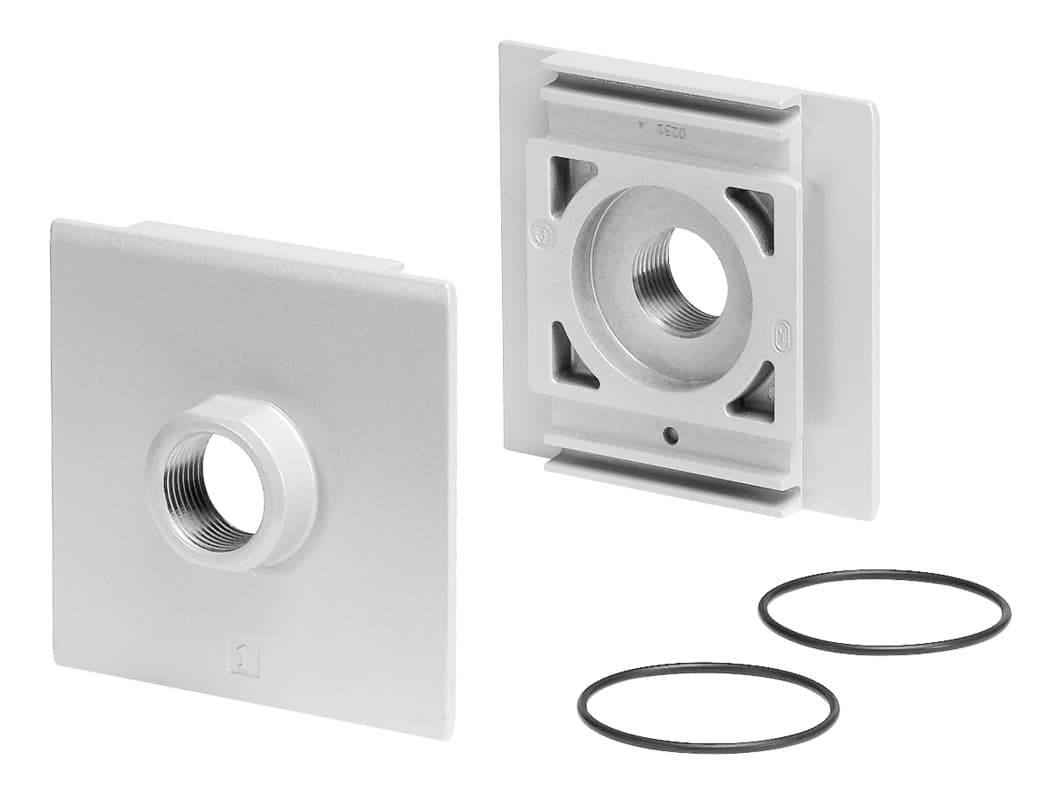

ms12-agi
Product ID:10275
Updated: 2026/4/3
Key Features
- 1Ensure reliable operation with compressed air to ISO 8573-1:2010 [7:4:4]. 2、Handle moderate corrosion stress with CRC 2 resistance class. 3、Utilize robust die-cast aluminum construction and NBR seals. 4、Mount in any position with the versatile size 12 design. 5、Operate across a wide -10 °C to 60 °C temperature range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Series | MS |
| Mounting position | Any | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | Temperature of medium | -10°C 60°C |
| Product weight | 1300g | Pneumatic connection 1 | G2 |
| Pneumatic connection 2 | G2 | Note on materials | RoHS-compliant |
| Material of sub-base | Die-cast aluminum | Seals material | NBR |
| Manufacturer ID | 537138 |
Specifications may be subject to change without notice
