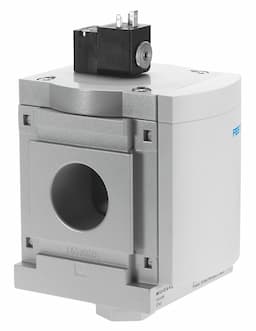

ms12-ee-g-v24
Product ID:10710
Updated: 2026/4/3
Key Features
- 1Control pneumatic systems efficiently with the Festo MS12-EE-G-V24 on/off valve. 2、Ensure precise airflow with its 3/2-way monostable function and 3-16 bar range. 3、Rely on durable operation thanks to mechanical spring reset and manual override. 4、Handle high flow demands with a rate up to 32,000 liters per minute. 5、Deploy in tough conditions with IP65 protection and a -10°C to 50°C range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Piston gate valve | Actuation type | Electrical |
| Exhaust air function | Without flow control option | Manual override | Detenting Non-detenting |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Symbol | 00991308 | Valve function | 3/2, closed, monostable |
| Operating pressure | 3bar 16bar | Lap | Overlap |
| Standard nominal flow rate | 25000l/min 32000l/min | Duty cycle | 100% |
| Coil characteristics | 24 V DC: 4.5 W | Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 50°C | Degree of protection | IP65 |
| Ambient temperature | -10°C 50°C | Type of mounting | Optionally: Line installation With accessories |
| Mounting position | Any | Flow direction | Non-reversible |
| Product weight | 3800g | Pneumatic connection 1 | Battery module |
| Pneumatic connection 2 | Battery module | Pneumatic connection 3 | G1 |
| Pilot air supply port | Internal | Electrical connection | as per DIN EN 175301-803 Rectangular design |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 541496 |
Specifications may be subject to change without notice
