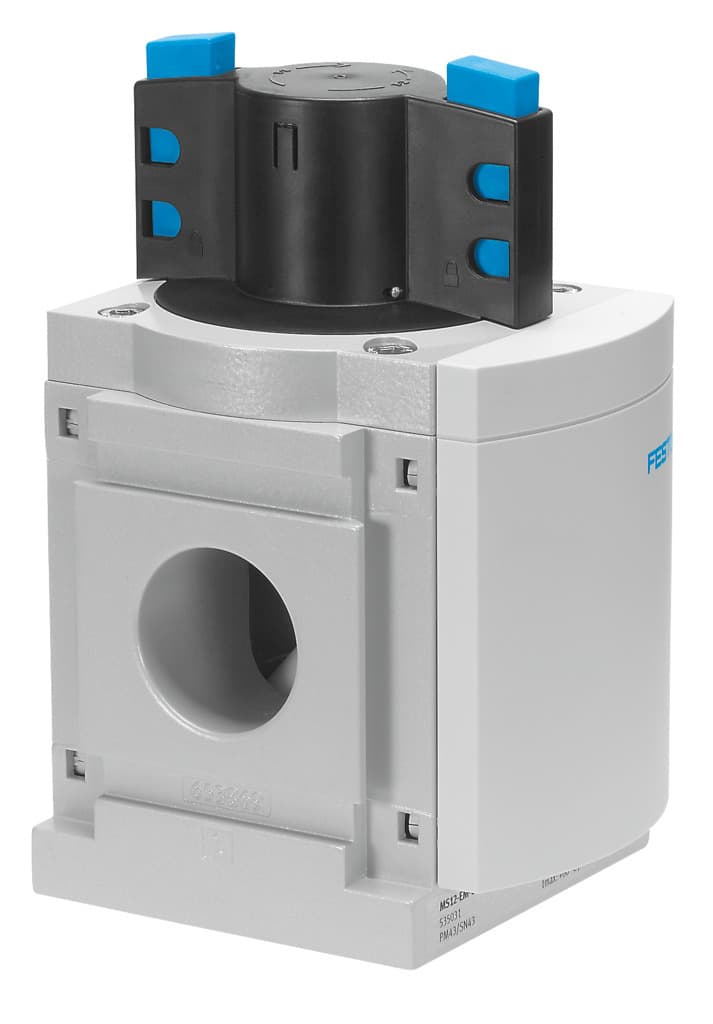

ms12-em
Product ID:9862
Updated: 2026/4/3
Key Features
- 1Control pneumatic systems manually with the MS12-EM piston gate valve. 2、Integrate easily using its direct piloting mechanism. 3、Achieve high flow rates from 25,000 to 32,000 L/min. 4、Operate reliably across a 0 to 20 bar pressure range. 5、Resist moderate corrosion with CRC 2 for durable performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Piston gate valve | Actuation type | Manual |
| Exhaust air function | Without flow control option | Type of control | Direct |
| Valve function | 3/2, bistable | Operating pressure | 0bar 20bar |
| Lap | Overlap | Standard nominal flow rate | 25000l/min 32000l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Type of mounting | Optionally: Line installation With accessories |
| Mounting position | Any | Flow direction | Non-reversible |
| Product weight | 3900g | Pneumatic connection 3 | G1 |
| Pilot air supply port | Internal | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 535031 |
Specifications may be subject to change without notice
