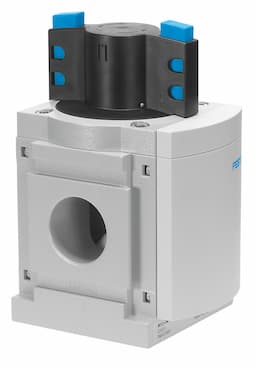

ms12-em-g
Product ID:10709
Updated: 2026/4/3
Key Features
- 1Control compressed air flow precisely with this manual piston gate valve. 2、Achieve high flow rates from 25,000 to 32,000 liters per minute. 3、Operate reliably across a 0 to 20 bar pressure range. 4、Ensure moderate corrosion resistance with the die-cast aluminum housing. 5、Install flexibly in-line or with accessories for non-reversible flow.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Piston gate valve | Actuation type | Manual |
| Exhaust air function | Without flow control option | Type of control | Direct |
| Symbol | 00991309 | Valve function | 3/2, bistable |
| Operating pressure | 0bar 20bar | Lap | Overlap |
| Standard nominal flow rate | 25000l/min 32000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
| Flow direction | Non-reversible | Product weight | 3900g |
| Pneumatic connection 1 | Battery module | Pneumatic connection 2 | Battery module |
| Pneumatic connection 3 | G1 | Pilot air supply port | Internal |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 541495 |
Specifications may be subject to change without notice
