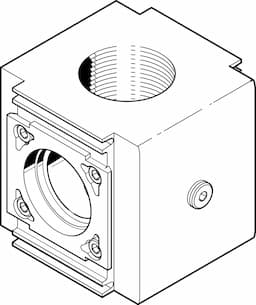

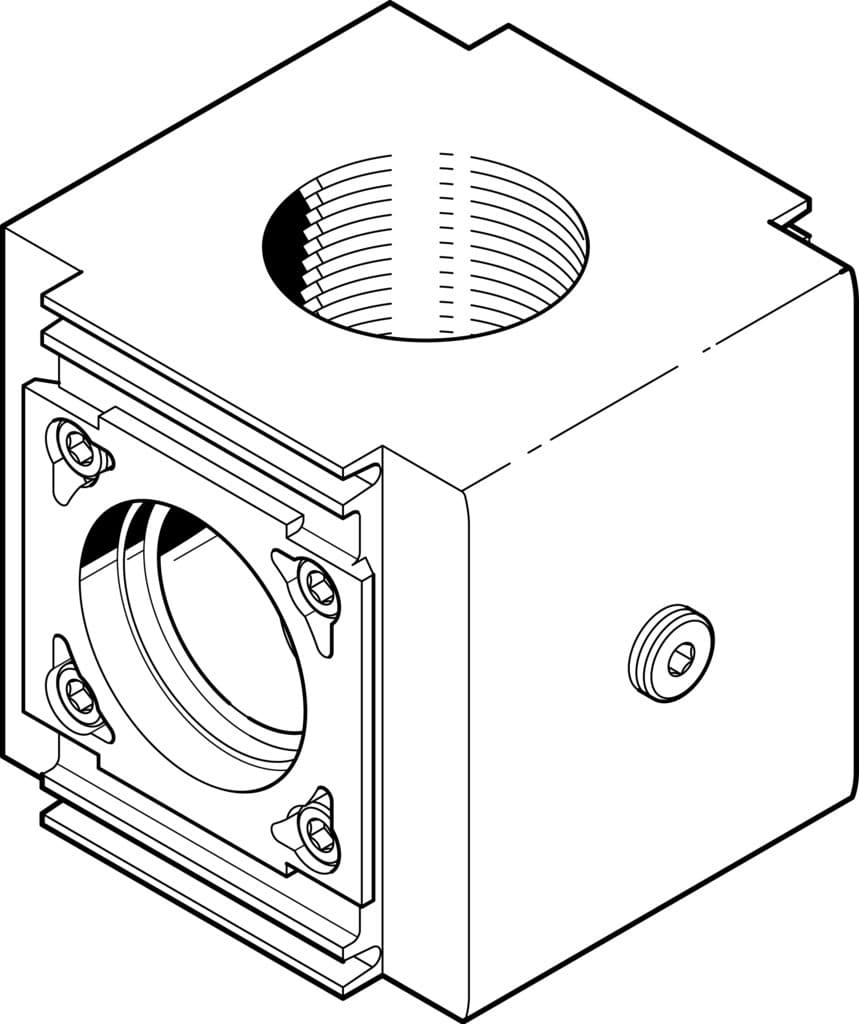

ms12-frm
Product ID:9866
Updated: 2026/4/3
Key Features
- 1Support high flow rates up to 42,000 L/min for demanding systems. 2、Ensure reliable air distribution within a 0-20 bar operating range. 3、Offer optional mounting positions for flexible system design. 4、Withstand moderate corrosion with a class 2 resistance rating. 5、Utilize lightweight yet robust die-cast aluminum construction.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Structural design | Branching module |
| Symbol | 00991510 | Operating pressure | 0bar 20bar |
| Standard nominal flow rate in main flow direction 1 -> 2 | 25000l/min 42000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Pneumatic connection 4 | G1 |
| Housing material | Die-cast aluminum | Manufacturer ID | 535035 |
Specifications may be subject to change without notice
