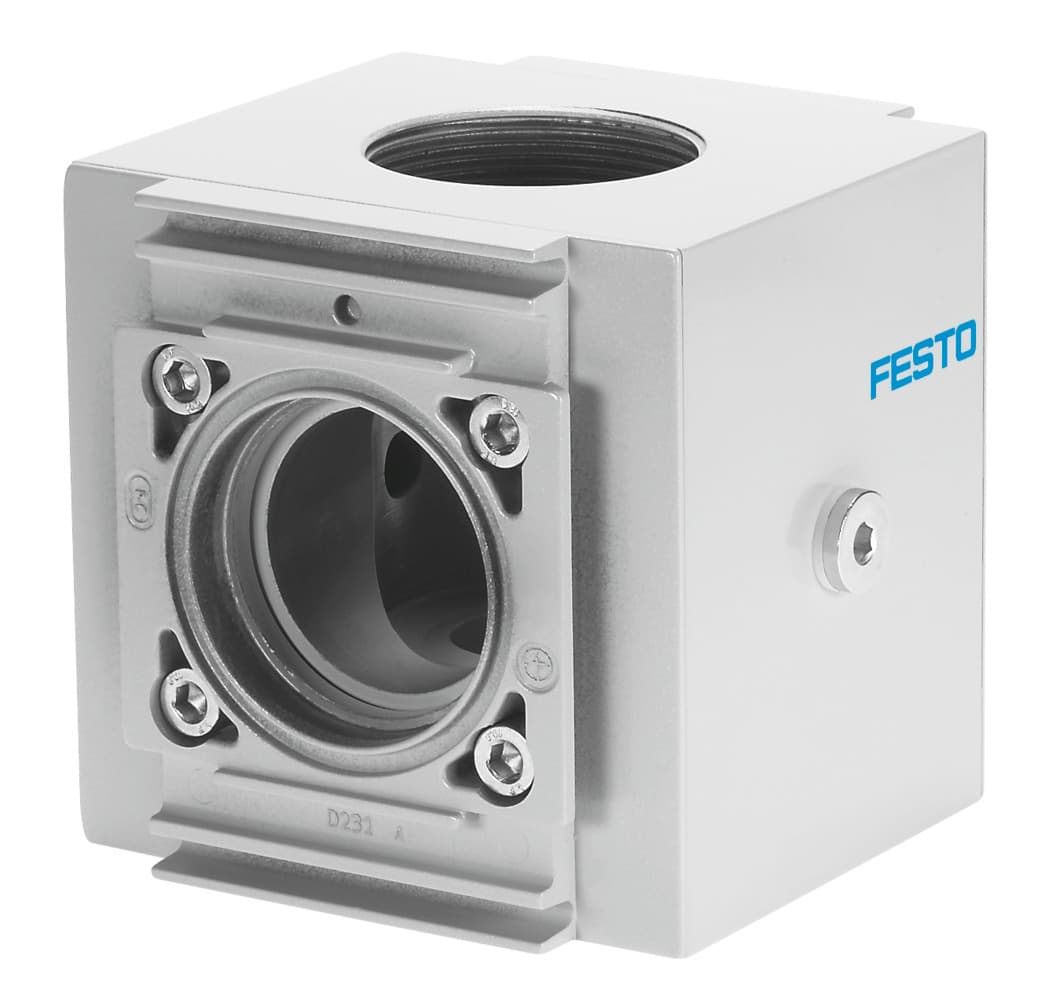

ms12-frm-g
Product ID:10737
Updated: 2026/7/23
Key Features
- 1Deliver high flow rates from 25,000 to 42,000 l/min for demanding applications.
- 2Install flexibly with an optional mounting position in various settings.
- 3Operate reliably with compressed air meeting ISO 8573-1:2010 standards.
- 4Resist moderate corrosion (class 2) against common industrial contaminants.
- 5Withstand temperatures from -10°C to 60°C with a die-cast aluminum housing.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Structural design | Branching module |
| Symbol | 00991510 | Operating pressure | 0bar 20bar |
| Standard nominal flow rate in main flow direction 1 -> 2 | 25000l/min 42000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 3000g |
| Pneumatic connection 1 | Battery module | Pneumatic connection 2 | Battery module |
| Pneumatic connection 3 | G2 | Pneumatic connection 4 | G1 |
| Housing material | Die-cast aluminum | Manufacturer ID | 541681 |
Specifications may be subject to change without notice
