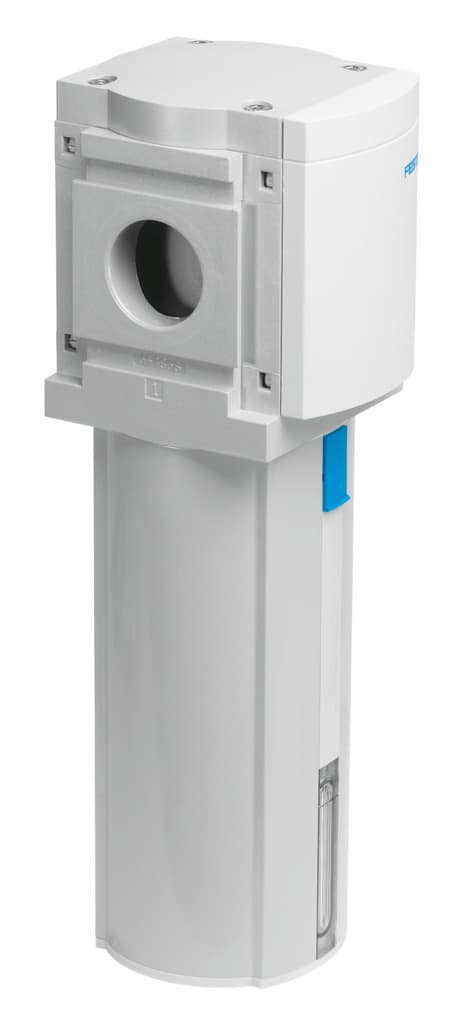

ms12-lf
Product ID:9858
Updated: 2026/4/3
Key Features
- 1Ensure high-quality air purification with a 40µm filtration grade. 2、Minimize maintenance using the fully automatic condensate drain. 3、Install flexibly via in-line or bracket mounting for various applications. 4、Rely on durable sintered filter and centrifugal separator construction. 5、Meet ISO 8573-1:2010 standards for compressed air and inert gases.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Series | MS |
| Mounting position | Vertical +/- 5° | Structural design | Sinter filter with centrifugal separator |
| Degree of condensate separation | 75% | Operating pressure | 0.8bar 20bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-] Compressed air as per ISO 8573-1:2010 [7:9:-] Inert gas | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Type of mounting | Optionally: Line installation With accessories |
| Pneumatic connection 1 | Internal | Pneumatic connection 2 | Internal |
| Housing material | Die-cast aluminum | Material of bowl | Wrought aluminum alloy |
| Manufacturer ID | 535023 |
Specifications may be subject to change without notice
