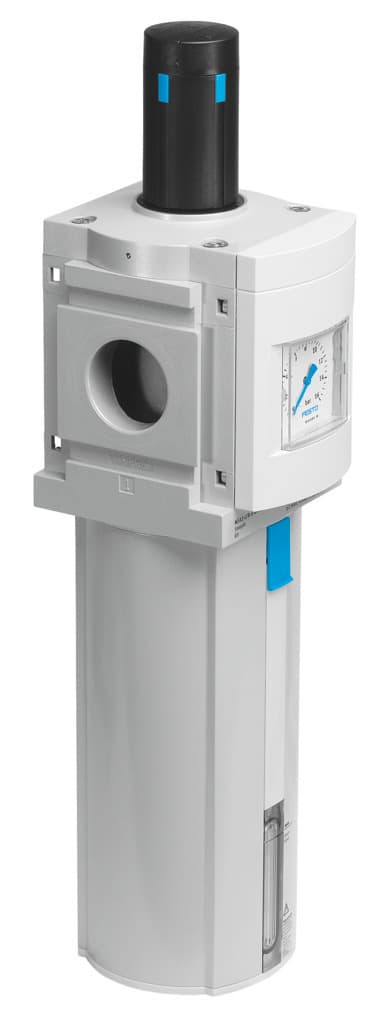

ms12-lfr
Product ID:9857
Updated: 2026/4/3
Key Features
- 1Deliver high flow rates up to 17,000 L/min for demanding applications. 2、Ensure precise control with minimal pressure hysteresis and compensation. 3、Protect equipment by efficiently separating particles and condensates. 4、Cover broad needs with pressure ranges from 0.3 to 16 bar. 5、Choose from manual, automatic, or electric drain options and filter inserts.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Series | MS |
| Actuator lock | Rotary knob with detent Rotary knob with integrated lock can be closed with accessories | Mounting position | Vertical +/- 5° |
| Structural design | Filter regulator with pressure gauge | Degree of condensate separation | 75% |
| Pressure gauge | with pressure gauge | Max. pressure hysteresis | 0.4bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Compressed air as per ISO 8573-1:2010 [7:4:-] Inert gas | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] Compressed air as per ISO 8573-1:2010 [7:4:4] | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Type of mounting | Optionally: Line installation With accessories |
| Housing material | Die-cast aluminum | Material of bowl | Wrought aluminum alloy |
| Manufacturer ID | 535022 |
Specifications may be subject to change without notice
