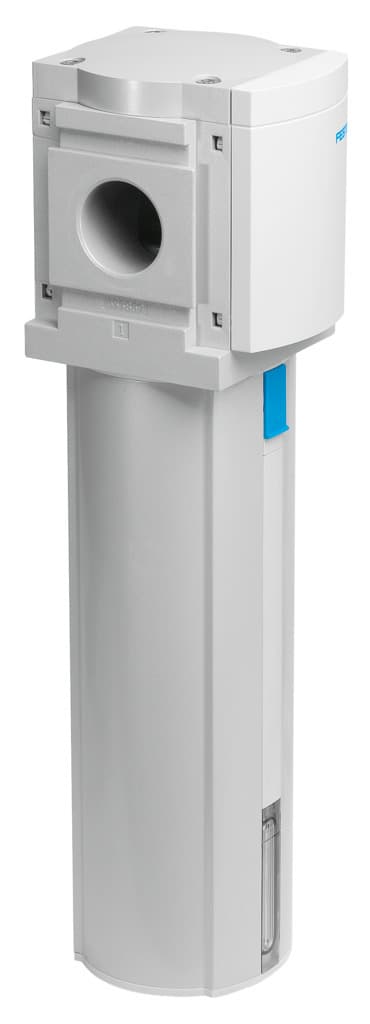

ms12-lfx
Product ID:9874
Updated: 2026/7/19
Key Features
- 1Remove both liquid and gaseous oil from compressed air reliably.
- 2Maintain ISO 8573-1 Class 1.7.1 air purity for compliance.
- 3Integrate easily with multiple NPT port connection options.
- 4Withstand moderate corrosion per Festo standard 940 070.
- 5Configure port plates and brackets for custom installation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Series | MS |
| Mounting position | Vertical +/- 5° | Structural design | Active carbon filter |
| Operating pressure | 0bar 20bar | Operating medium | Compressed air as per ISO 8573-1:2010 [1:4:2] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:4:1] |
| Temperature of medium | 5°C 30°C | Residual oil content | 0.003mg/m3 |
| Ambient temperature | -10°C 60°C | Type of mounting | Optionally: Line installation With accessories |
| Note on materials | RoHS-compliant | Compressed air filter material | Activated carbon |
| Housing material | Die-cast aluminum | Material of bowl | Wrought aluminum alloy |
| Manufacturer ID | 535043 |
Specifications may be subject to change without notice
