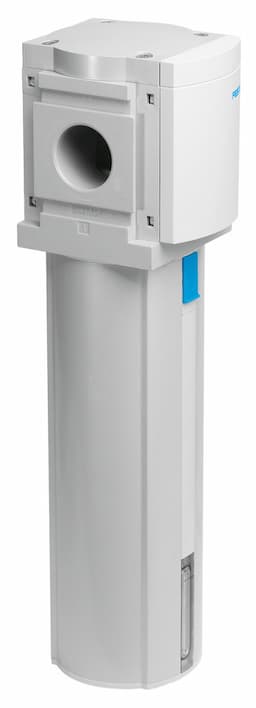

ms12-lfx-g-u
Product ID:10291
Updated: 2026/4/3
Key Features
- 1Remove liquid and gaseous oil particles for high air purity. 2、Handle flow rates from 5,065 to 15,190 l/min efficiently. 3、Operate reliably under pressures from 0 to 20 bar. 4、Ensure compliance with ISO 8573-1:2010 compressed air standards. 5、Benefit from a robust die-cast aluminum housing and NBR seals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Series | MS |
| Mounting position | Vertical +/- 5° | Condensate drain | Manually rotating |
| Structural design | Fiber filter | Bowl guard | Integrated as metal bowl guard |
| Symbol | 00991519 | Operating pressure | 0bar 20bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [1:4:2] Inert gas | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [1:4:1] | Temperature of medium | 5°C 30°C |
| Residual oil content | 0.003mg/m3 | Ambient temperature | -10°C 60°C |
| Product weight | 7000g | Type of mounting | Optionally: Line installation With mounting bracket |
| Covering material | PA | Note on materials | RoHS-compliant |
| Seals material | NBR | Compressed air filter material | Activated carbon Fiber |
| Housing material | Die-cast aluminum | Material of bowl | Wrought aluminum alloy |
| Inspection window material | PC | Manufacturer ID | 537155 |
Specifications may be subject to change without notice
