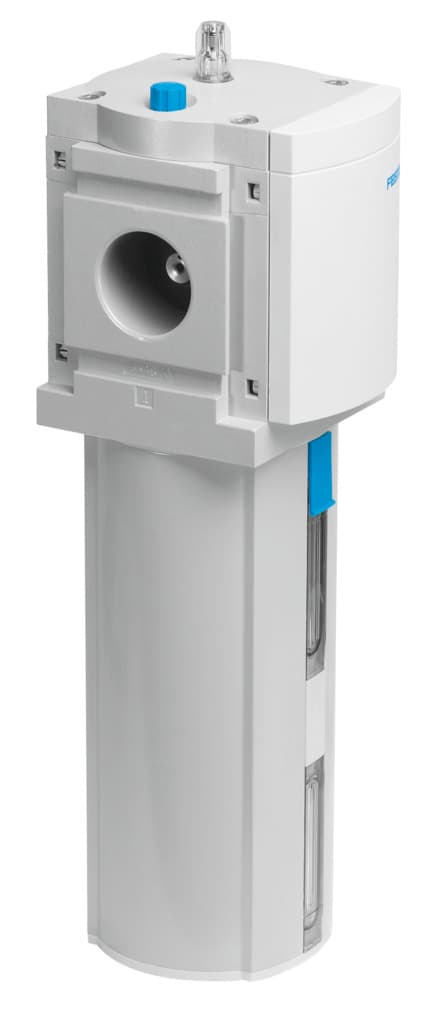

ms12-loe
Product ID:9872
Updated: 2026/4/3
Key Features
- 1Ensure optimal air line lubrication with a proportional oil mist system. 2、Install vertically with flexibility using a ±5° angle tolerance. 3、Maximize uptime with a large 1500 cm³ oil filling volume. 4、Resist corrosion with durable die-cast aluminum housing. 5、Integrate easily into compact setups weighing only 6.5 kg.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Series | MS |
| Mounting position | Vertical +/- 5° | Structural design | Proportional standard oil mist lubricator |
| Operating pressure | 1bar 16bar | Minimum flow rate for lubricator function | 400l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| Oil viscosity | ISO VG 32 | Ambient temperature | 0°C 60°C |
| Type of mounting | Optionally: Line installation With accessories | Housing material | Die-cast aluminum |
| Material of bowl | Wrought aluminum alloy | Manufacturer ID | 535041 |
Specifications may be subject to change without notice
