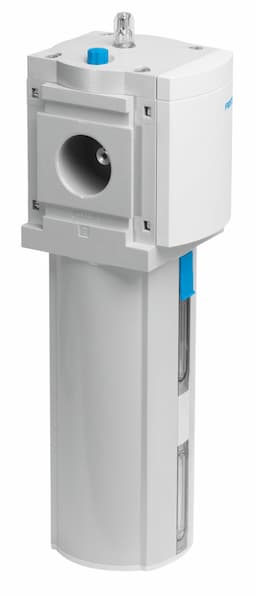

ms12-loe-g-u
Product ID:10292
Updated: 2026/4/3
Key Features
- 1Ensure reliable lubrication for optimal pneumatic performance. 2、Install vertically with ±5° flexibility for easy integration. 3、Maximize uptime with a 1,500 cm³ oil capacity. 4、Construct a durable unit from corrosion-resistant aluminum alloys. 5、Operate in a wide -10 to 60 °C temperature range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Series | MS |
| Mounting position | Vertical +/- 5° | Structural design | Proportional standard oil mist lubricator |
| Max. oil capacity | 1500cm3 | Bowl guard | Integrated as metal bowl guard |
| Symbol | 00991532 | Operating pressure | 1bar 16bar |
| Minimum flow rate for lubricator function | 400l/min | Standard nominal flow rate | 20000l/min 22000l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| Temperature of medium | 0°C 60°C | Oil viscosity | ISO VG 32 |
| Ambient temperature | 0°C 60°C | Product weight | 6500g |
| Type of mounting | Optionally: Line installation With mounting bracket | Pneumatic connection 1 | Internal |
| Pneumatic connection 2 | Internal | Covering material | PA |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Material of bowl | Wrought aluminum alloy | Manufacturer ID | 537156 |
Specifications may be subject to change without notice
