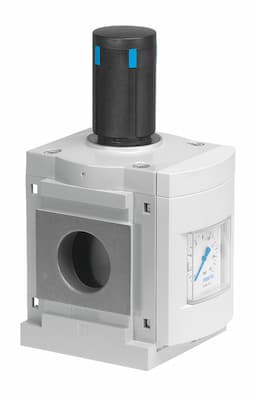

ms12-lr-g-d7-ld-as
Product ID:10284
Updated: 2026/7/4
Key Features
- 1Deliver reliable 12 bar max output pressure for high-demand applications.
- 2Ensure precise control with a lockable regulator head and integrated pressure gauge.
- 3Maintain system quality using compressed air per ISO8573-1:2010 [7:4:4] standards.
- 4Achieve constant pressure with a pre-controlled membrane valve and secondary exhaust.
- 5Support high flow rates up to 22,000 l/min for diverse industrial uses.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Any |
| Structural design | Pilot-controlled diaphragm regulator | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |

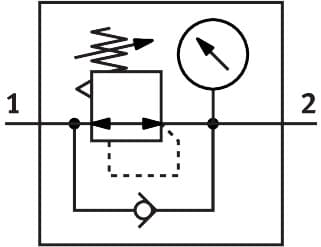

| Symbol | 00991558 | Pressure gauge | with pressure gauge |
| Operating pressure | 0.8bar 21bar | Pressure regulation range | 0.5bar 12bar |
| Max. pressure hysteresis | 5.8psi | Flow rate of secondary venting | 600l/min |
| Standard nominal flow rate | 13000l/min 22000l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 4000g |
| Type of mounting | Optionally: Line installation With mounting bracket | Pneumatic connection 1 | Sub-base |
| Pneumatic connection 2 | Sub-base | Covering material | PA |
| Note on materials | RoHS-compliant | Material of operator panel | PA-reinforced POM |
| Lower cover material | Wrought aluminum alloy | Seals material | NBR |
| Material of spring | Spring steel | Housing material | Die-cast aluminum |
| Diaphragm material | NBR | Valve tappet material | Wrought aluminum alloy NBR High-alloy stainless steel |
| Manufacturer ID | 537148 |
Specifications may be subject to change without notice
