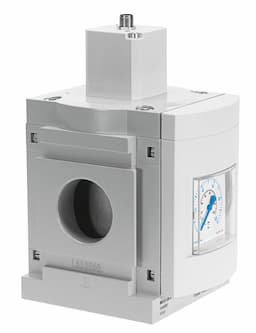

ms12-lr-g-pe6
Product ID:13160
Updated: 2026/4/3
Key Features
- 1Achieve high flow rates up to 21,000 l/min for efficient system operation. 2、Control pressure precisely from 0.115 to 0.8 MPa with minimal hysteresis. 3、Rely on robust die-cast aluminum housing and NBR seals for durability. 4、Install flexibly with optional mounting positions to suit your layout. 5、Ensure reliable operation with ISO 8573-1:2010 compliance and IP65 rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Series | MS |
| Mounting position | Any | Structural design | Pilot-controlled diaphragm regulator |

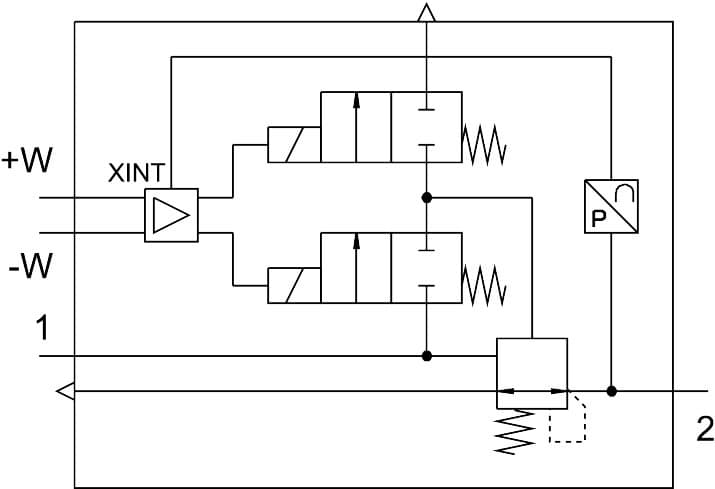

| Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function | Symbol | 00991856 |
| Pressure gauge | with pressure gauge | Operating pressure | 1.15bar 8bar |
| Pressure regulation range | 0.15bar 6bar | Max. pressure hysteresis | 0.58psi |
| Flow rate of secondary venting | 600l/min | Standard nominal flow rate | 12000l/min 21000l/min |
| DC operating voltage range | 21.6V 26.4V | Max. electrical power consumption | 3.6W |
| Max. current consumption | 0.15A | Nominal operating voltage DC | 24V |
| Residual ripple | 10 % | Analog input signal range | 0 - 10 V |
| KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | Temperature of medium | 10°C 50°C |
| Degree of protection | IP65 | Ambient temperature | 10°C 50°C |
| Product weight | 4000g | Type of mounting | Optionally: Line installation With mounting bracket |
| Pneumatic connection 1 | Sub-base | Pneumatic connection 2 | Sub-base |
| Covering material | PA | Note on materials | RoHS-compliant |
| Lower cover material | Wrought aluminum alloy | Seals material | NBR |
| Material of spring | Spring steel | Housing material | Die-cast aluminum |
| Diaphragm material | NBR | Valve tappet material | Wrought aluminum alloy NBR High-alloy stainless steel |
| Manufacturer ID | 564888 |
Specifications may be subject to change without notice
