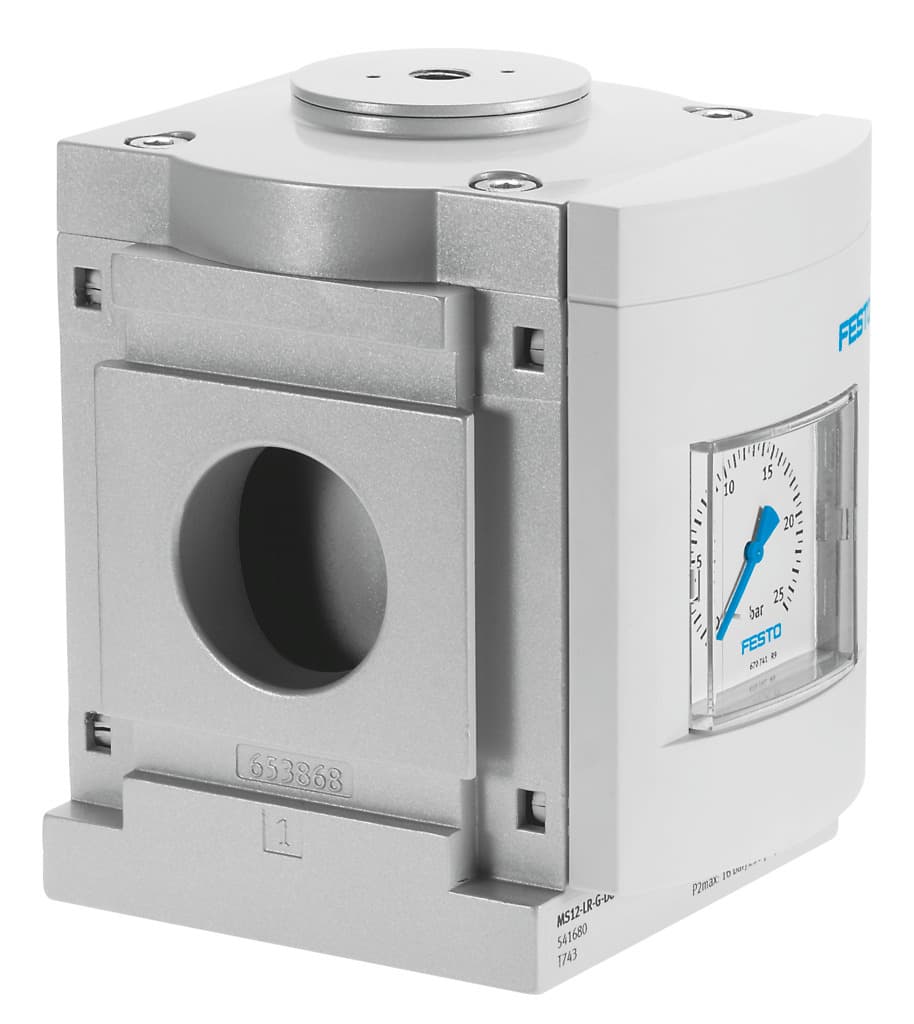

ms12-lr-g-po
Product ID:10736
Updated: 2026/4/3
Key Features
- 1Deliver high flow rates from 13,000 to 22,000 liters per minute. 2、Maintain constant working pressure between 0.5 and 16 bar. 3、Withstand moderate corrosion with a class 2 resistance rating. 4、Install in any position for maximum design flexibility. 5、Rely on robust die-cast aluminum and NBR seals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Series | MS |
| Mounting position | Any | Structural design | Diaphragm regulator |
| Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function | Symbol | 00991900 |
| Pressure gauge | with pressure gauge | Operating pressure | 0.8bar 21bar |
| Pressure regulation range | 0.5bar 16bar | Max. pressure hysteresis | 5.8psi |
| Flow rate of secondary venting | 600l/min | Standard nominal flow rate | 13000l/min 22000l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Product weight | 4000g | Type of mounting | Optionally: Line installation With mounting bracket |
| Pilot air port 12 | G1/4 | Pneumatic connection 1 | Sub-base |
| Pneumatic connection 2 | Sub-base | Covering material | PA |
| Note on materials | RoHS-compliant | Lower cover material | Wrought aluminum alloy |
| Seals material | NBR | Material of spring | Spring steel |
| Housing material | Die-cast aluminum | Diaphragm material | NBR |
| Valve tappet material | Wrought aluminum alloy NBR High-alloy stainless steel | Manufacturer ID | 541680 |
Specifications may be subject to change without notice
