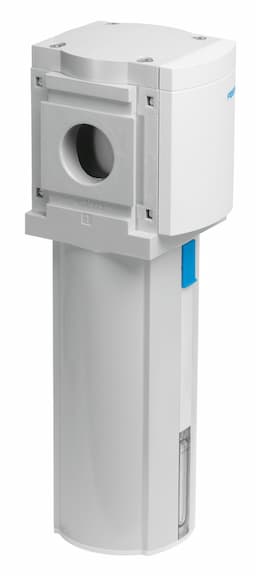

ms12-lws
Product ID:13530
Updated: 2026/7/4
Key Features
- 1Achieve 99% high-efficiency condensate separation.
- 2Handle maximum flow rates up to 40,000 L/min.
- 3Enable continuous operation with automatic condensate drain.
- 4Protect the system with an integrated metal bowl guard.
- 5Integrate versatilely across 2 to 12 bar pressure.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Series | MS |
| Mounting position | Vertical +/- 5° | Condensate drain | Fully automatic Fully automatic, electrically controlled |
| Structural design | Centrifugal separator | Max. condensate volume | 400ml |
| Bowl guard | Integrated as metal bowl guard | Degree of condensate separation | 99% |
| Symbol | 00992244 | Operating pressure | 1bar 16bar |
| Max. standard flow rate | 40000l/min | Standard nominal flow rate | 25000l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Compressed air as per ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | 1°C 60°C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [-:7:4] | Temperature of medium | 1°C 60°C |
| Ambient temperature | 1°C 60°C | Type of mounting | Optionally: Line installation With mounting bracket With accessories |
| Covering material | PA-reinforced | Material of spin disc | POM |
| Material of sub-base | Die-cast aluminum | Material of mounting bracket | Die-cast aluminum |
| Housing material | Die-cast aluminum | Module connector material | Die-cast aluminum |
| Material of bowl | Wrought aluminum alloy | Shell sealing material | NBR |
| Inspection window material | PA | Separating disc material | POM |
| Manufacturer ID | 569827 |
Specifications may be subject to change without notice
