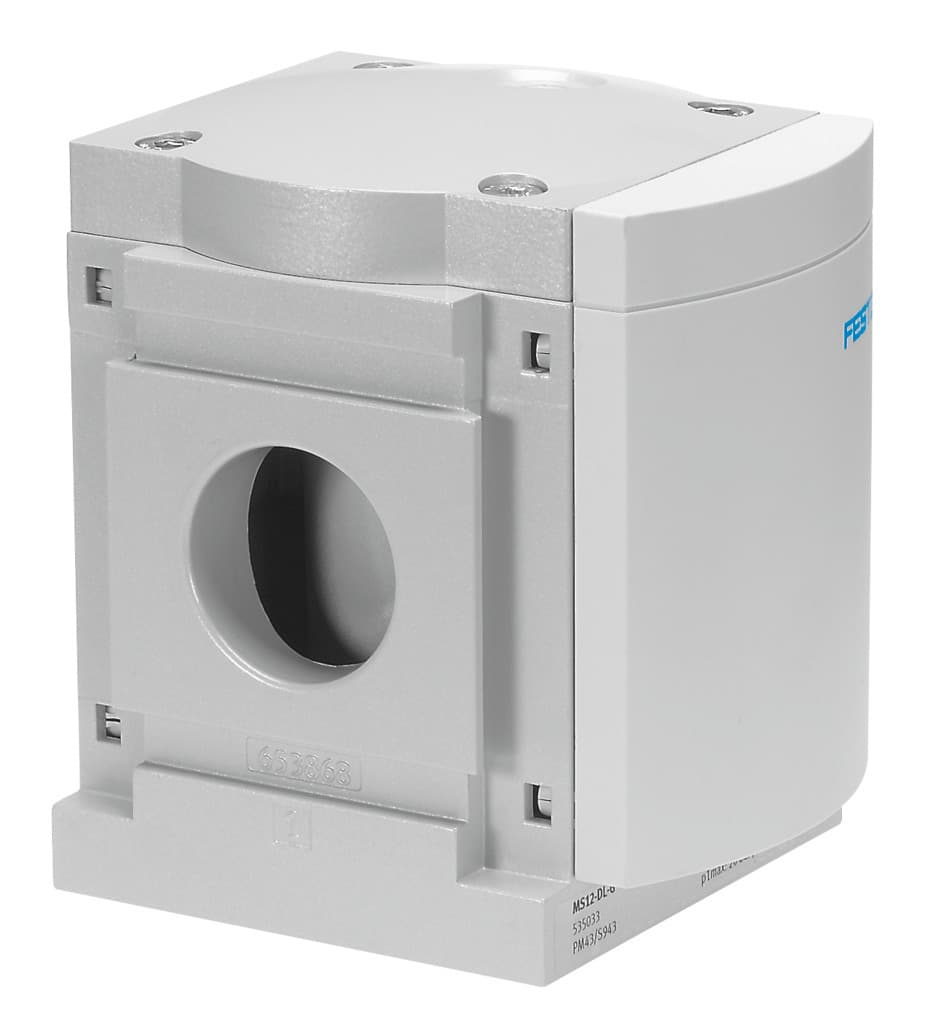

ms12n-dl
Product ID:9869
Updated: 2026/7/4
Key Features
- 1Achieve corrosion resistance class 2 per Festo standard 940 070 for durability.
- 2Construct the body from die-cast aluminum and cap from aluminum for robustness.
- 3Utilize a stainless steel valve spool and nitrile rubber for reliable sealing.
- 4Operate seamlessly from 14°F to 140°F with compressed air compatibility.
- 5Integrate easily into existing MS series systems for flexible customization.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Exhaust air function | With flow control option | Actuation type | Pneumatic |
| Mounting position | Any | Manual override | None |
| Structural design | Piston seat | Reset method | Mechanical spring |
| Type of control | Direct | Pilot air supply port | Internal |
| Flow direction | Non-reversible | Valve function | 2/2 |
| Operating pressure | 2bar 20bar | Standard nominal flow rate | 25000l/min 42000l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 3600g |
| Type of mounting | Optionally: Line installation With accessories | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 535038 |
Specifications may be subject to change without notice
