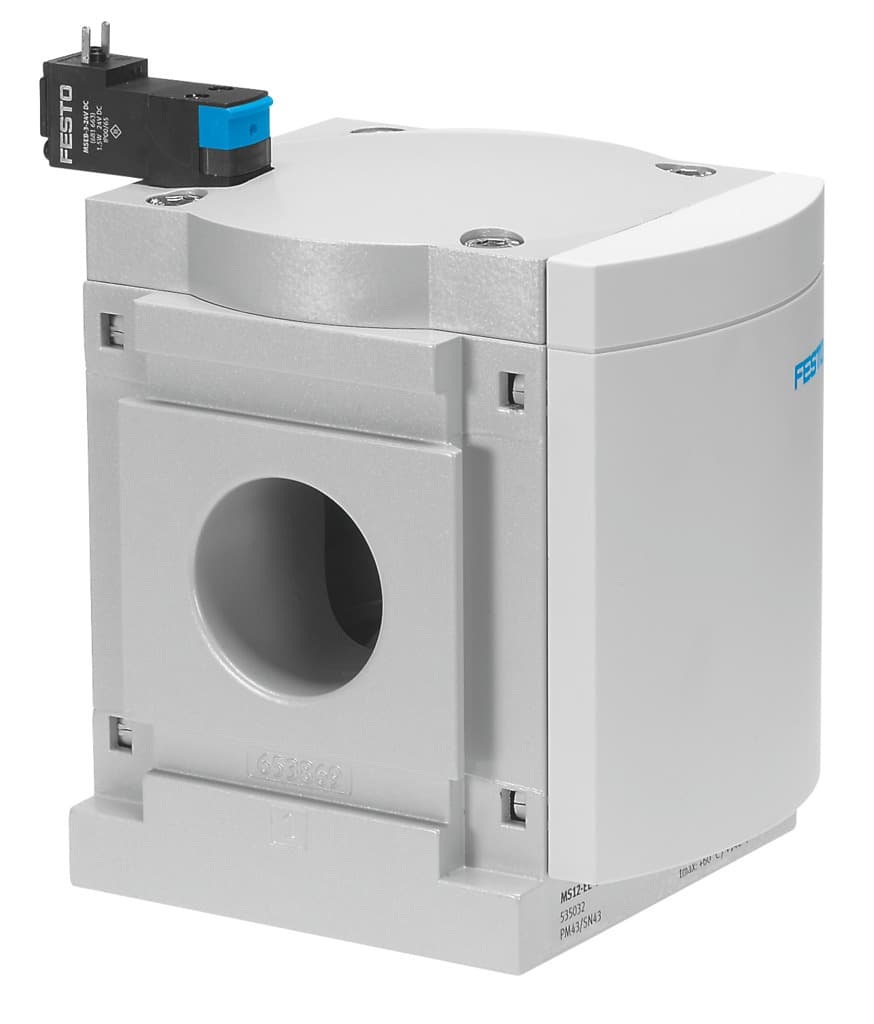

ms12n-ee
Product ID:9868
Updated: 2026/7/4
Key Features
- 1Manually operate the solenoid-actuated MS12N-EE for reliable pneumatic control.
- 2Connect via versatile 1 NPT to 2 NPT ports for system compatibility.
- 3Handle pressures from 44 to 235 psi for wide industrial use.
- 4Achieve efficient flow rates of 882.5 to 1,482.6 scfm.
- 5Rely on durable die-cast aluminum and stainless steel construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Piston gate valve | Actuation type | Electrical |
| Exhaust air function | Without flow control option | Manual override | Detenting Non-detenting |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Valve function | 3/2, closed, monostable | Operating pressure | 3bar 16bar |
| Lap | Overlap | Standard nominal flow rate | 25000l/min 32000l/min |
| Duty cycle | 100% | Coil characteristics | 110 V AC: 50 Hz, initial power 11.5 VA, holding power 8.9 VA 110 V AC: 60 Hz, initial power 9.5 VA, holding power 6.2 VA 230 V AC: 50 Hz, initial power 11.5 VA, holding power 9.1 VA 230 V AC: 60 Hz, initial power 9.5 VA, holding power 6.4 VA 24 V DC: 4.5 W |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 50°C |
| Degree of protection | IP65 | Ambient temperature | -10°C 50°C |
| CE marking (see declaration of conformity) | As per EU low voltage directive | UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
| Flow direction | Non-reversible | Product weight | 3800g |
| Pneumatic connection 3 | G1 | Pilot air supply port | Internal |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 535037 |
Specifications may be subject to change without notice
