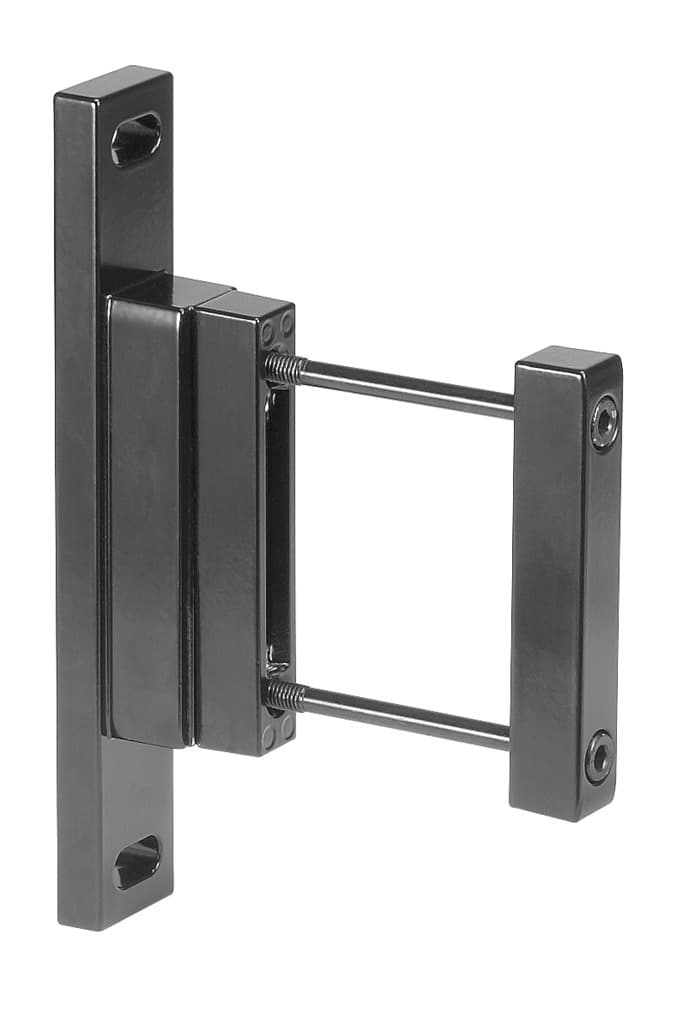

ms12-wp
Product ID:10270
Updated: 2026/4/3
Key Features
- 1Achieve CRC 2-rated corrosion resistance for moderate environments. 2、Comply with LABS (PWIS) standards per VDMA24364-B1/B2-L. 3、Operate reliably from -10°C to 60°C. 4、Utilize durable die-cast aluminum and steel construction. 5、Meet RoHS standards for eco-friendly projects.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Series | MS |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | Temperature of medium | -10°C 60°C |
| Product weight | 700g | Note on materials | RoHS-compliant |
| Seals material | NBR | Plate material | Die-cast aluminum |
| Material of screws | Steel | Bracket material | Die-cast aluminum |
| Manufacturer ID | 537133 |
Specifications may be subject to change without notice
