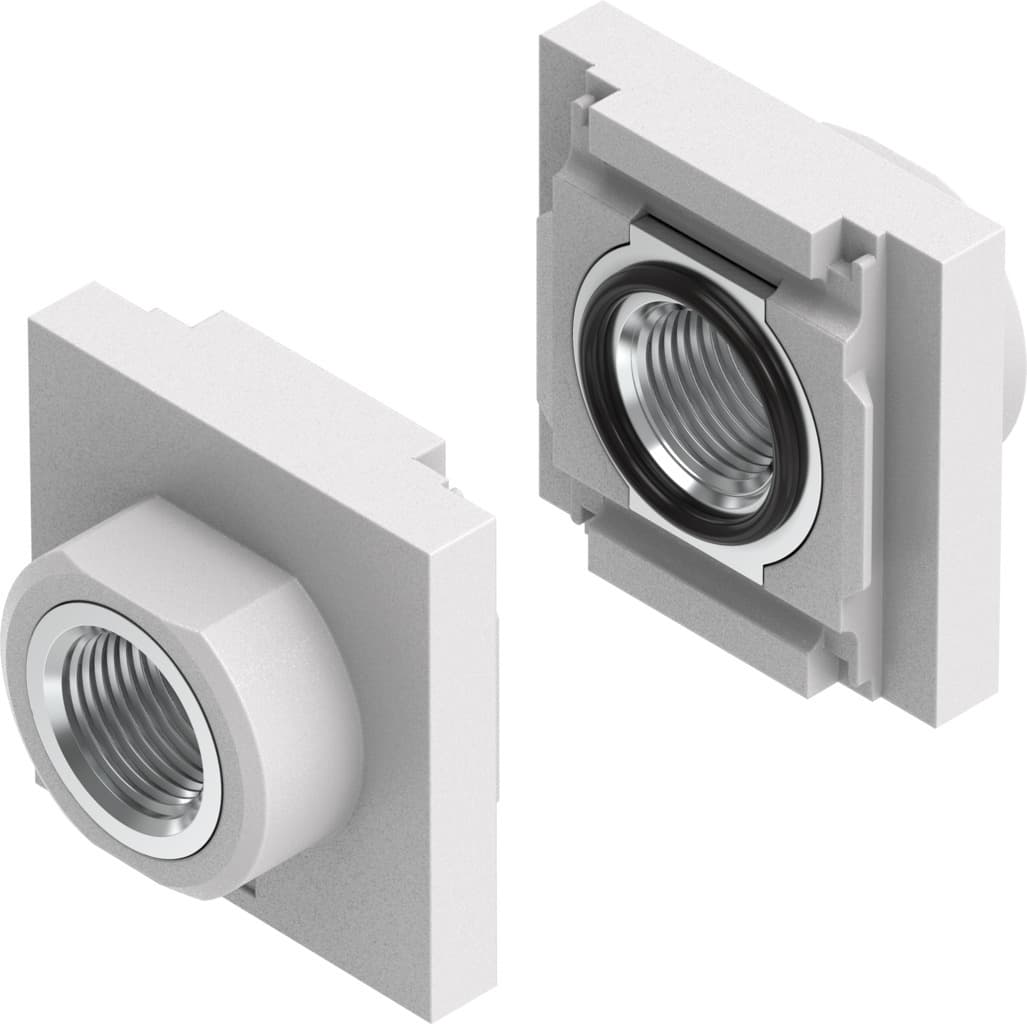

ms4-agc-ex
Product ID:10717
Updated: 2026/4/3
Key Features
- 1Achieve corrosion resistance class 2 for moderate stress environments. 2、Operate reliably across a -10°C to 60°C media temperature range. 3、Utilize high-quality materials like die-cast aluminum and NBR seals. 4、Connect efficiently with dual G3/8 pneumatic ports. 5、Meet industry standards including LABS and VDMA24364.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 128g |
| Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G3/8 |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Seals material | NBR | Material of screws | Steel |
| Manufacturer ID | 541551 |
Specifications may be subject to change without notice
