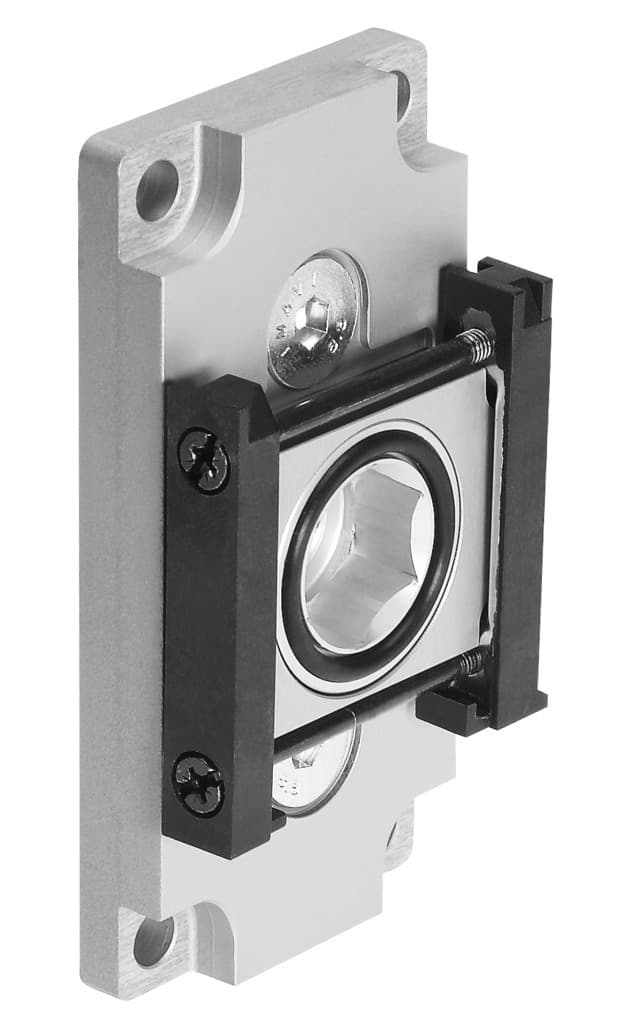

ms4-a-ipm-80
Product ID:10915
Updated: 2026/4/3
Key Features
- 1Utilize die-cast aluminum construction for superior durability and corrosion resistance. 2、Operate reliably across a broad -10°C to 60°C temperature range. 3、Benefit from long-lasting NBR seals that minimize wear and maintenance. 4、Ensure environmental compliance with RoHS-certified materials and design. 5、Integrate the compact 150-gram module easily into complex pneumatic systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Product weight | 124g |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Seals material | NBR | Hollow bolt material | Die-cast aluminum |
| Module connector material | Die-cast aluminum | Material of screws | Steel |
| Manufacturer ID | 543498 |
Specifications may be subject to change without notice
