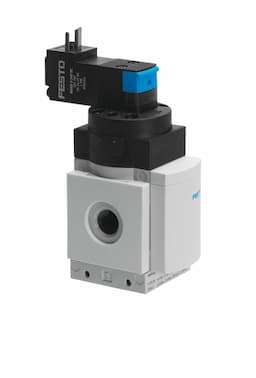

ms4-de-1/4-v230
Product ID:9195
Updated: 2026/4/3
Key Features
- 1Ensure smooth pressure build-up with this 2/2-way solenoid soft-start valve. 2、Gain high corrosion resistance from its die-cast aluminum housing and NBR seals. 3、Handle demanding flows with a 2,000 l/min nominal flow rate. 4、Operate reliably in explosive areas with Zone 2 and 22 certifications. 5、Simplify maintenance via the internal pilot air supply and spring reset.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Actuation type | Electrical | Mounting position | Any |
| Manual override | Detenting Non-detenting | Structural design | Piston seat |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991501 | Valve function | 2/2 |
| Switching position indication | with accessories | Operating pressure | 4bar 14bar |
| b-value | 0.45 | C value | 9.6l/sbar |
| Standard nominal flow rate | 2000l/min | Duty cycle | 100% |
| Coil characteristics | 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA | Certification | c UL us - Recognized (OL) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Degree of protection | IP65 | Ambient temperature | -10°C 60°C |
| Product weight | 263g | Electrical connection | Form C Plug as per DIN EN 175301-803 Rectangular design |
| Signal status display | With accessories | Type of mounting | Optionally: Line installation With accessories |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 529521 |
Specifications may be subject to change without notice
