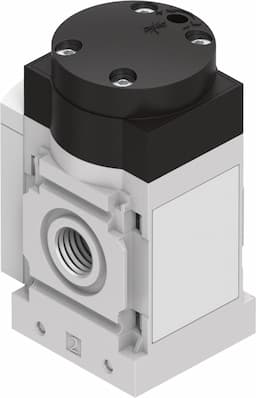

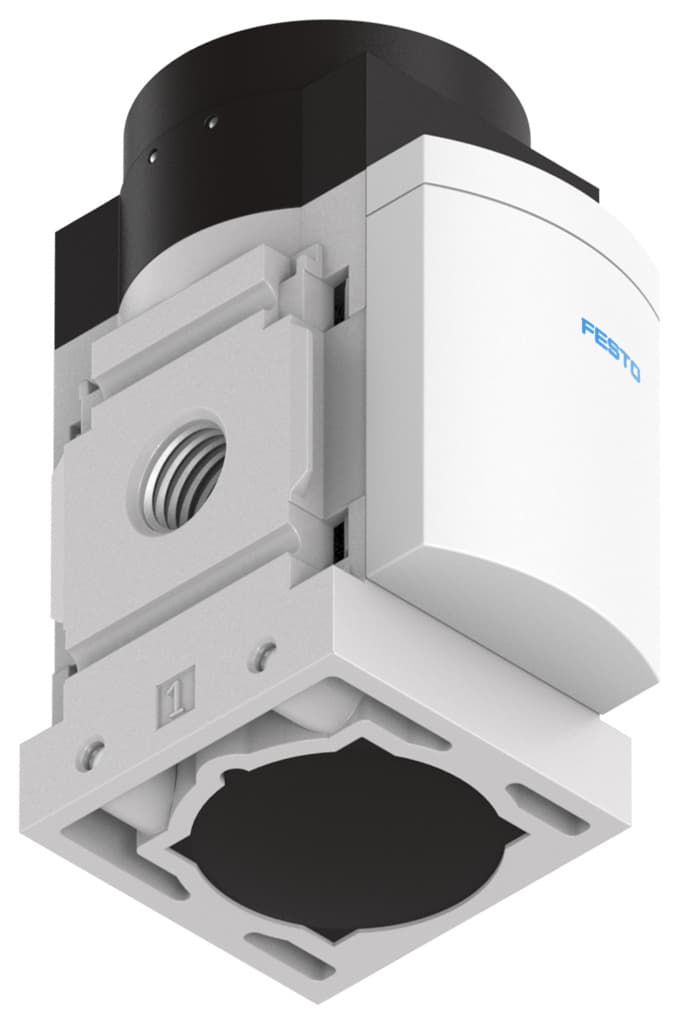

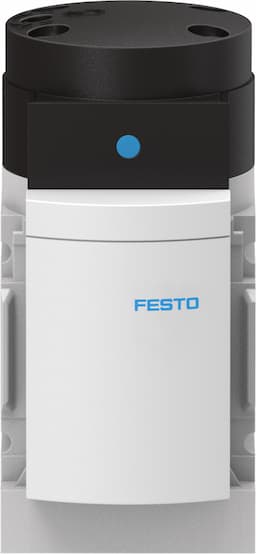

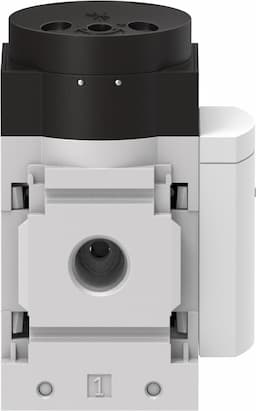

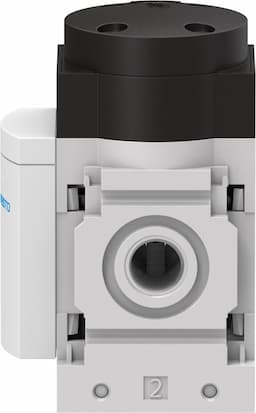

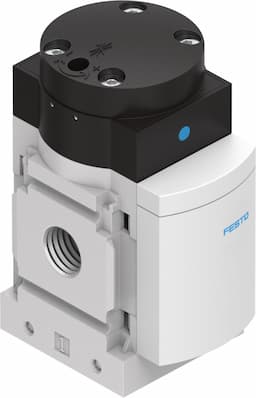

ms4-dl
Product ID:9096
Updated: 2026/4/3
Key Features
- 1Gradually build pneumatic pressure to reduce shock and component wear. 2、Control compressed air flow precisely with pneumatic actuation. 3、Mount the valve in any position for flexible system design. 4、Ensure controlled air delivery with the integrated flow control. 5、Rely on the durable piston seat for consistent, long-term operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Exhaust air function | With flow control option | Actuation type | Pneumatic |
| Mounting position | Any | Manual override | None |
| Structural design | Piston seat | Reset method | Mechanical spring |
| Type of control | Direct | Pilot air supply port | External |
| Flow direction | Non-reversible | Valve function | 2/2 |
| Pressure gauge | G1/4 prepared G1/8 prepared with pressure sensor with pressure gauge | Operating pressure | 4bar 14bar |
| Standard nominal flow rate | 1000l/min 2000l/min | Certification | c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) |
| ATEX category gas | II 2G | ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T6 Gb X | Type of (ignition) protection for dust | Ex h IIIC T60°C Db X |
| Explosive ambient temperature | -10°C <= Ta <= +60°C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | For use in the food industry | See supplementary material information |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Product weight | 213g | Type of mounting | Optionally: Line installation With accessories |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 527711 |
Specifications may be subject to change without notice
