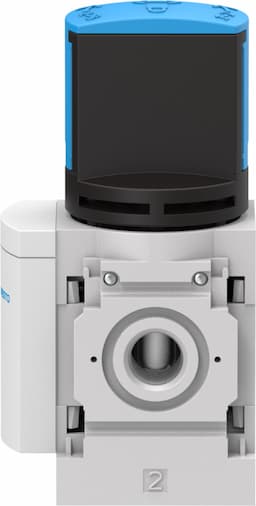

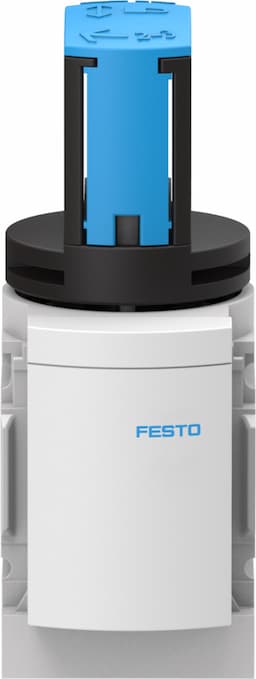

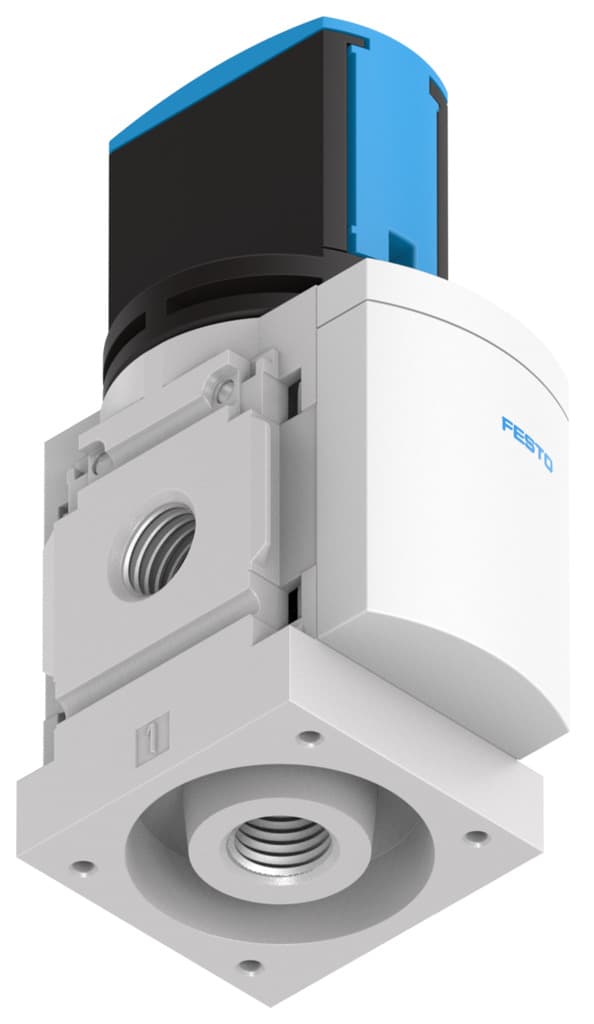

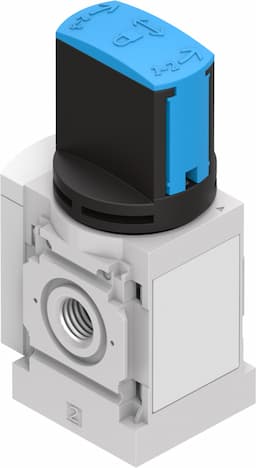

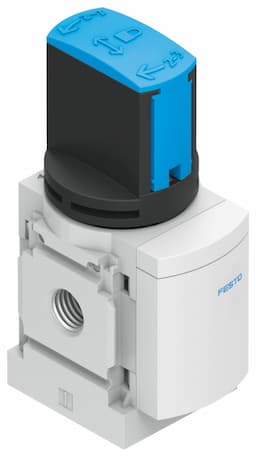

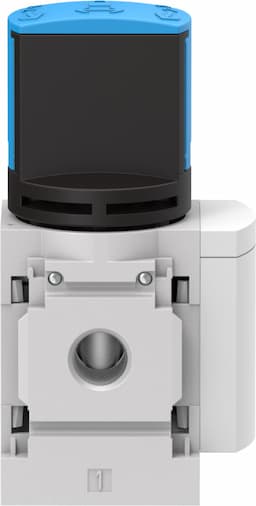

ms4-em1
Product ID:10629
Updated: 2026/7/4
Key Features
- 1Ensure reliable shut-off with the manual rotary gate valve design.
- 2Handle flows from 1,200 to 8,700 l/min for diverse applications.
- 3Operate within a 0 to 18 bar pressure range using compressed air.
- 4Achieve easy manual actuation via the bistable 3/2-way rotary knob.
- 5Install in any position with durable die-cast aluminum housing.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Rotary gate valve | Actuation type | Manual |
| Exhaust air function | Without flow control option | Type of control | Direct |
| Valve function | 3/2, bistable | Pressure gauge | G1/4 prepared G1/8 prepared with pressure sensor with pressure gauge |
| Operating pressure | 0bar 14bar | Standard nominal flow rate | 1200l/min 2200l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Certification | c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) |
| ATEX category gas | II 2G | ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T6 Gb X | Type of (ignition) protection for dust | Ex h IIIC T60°C Db X |
| Explosive ambient temperature | -10°C <= Ta <= +60°C | For use in the food industry | See supplementary material information |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
| Flow direction | Non-reversible | Pneumatic connection 3 | G1/4 |
| Seals material | TPE-U(PU) | Housing material | Die-cast aluminum |
| Manufacturer ID | 541266 |
Specifications may be subject to change without notice
