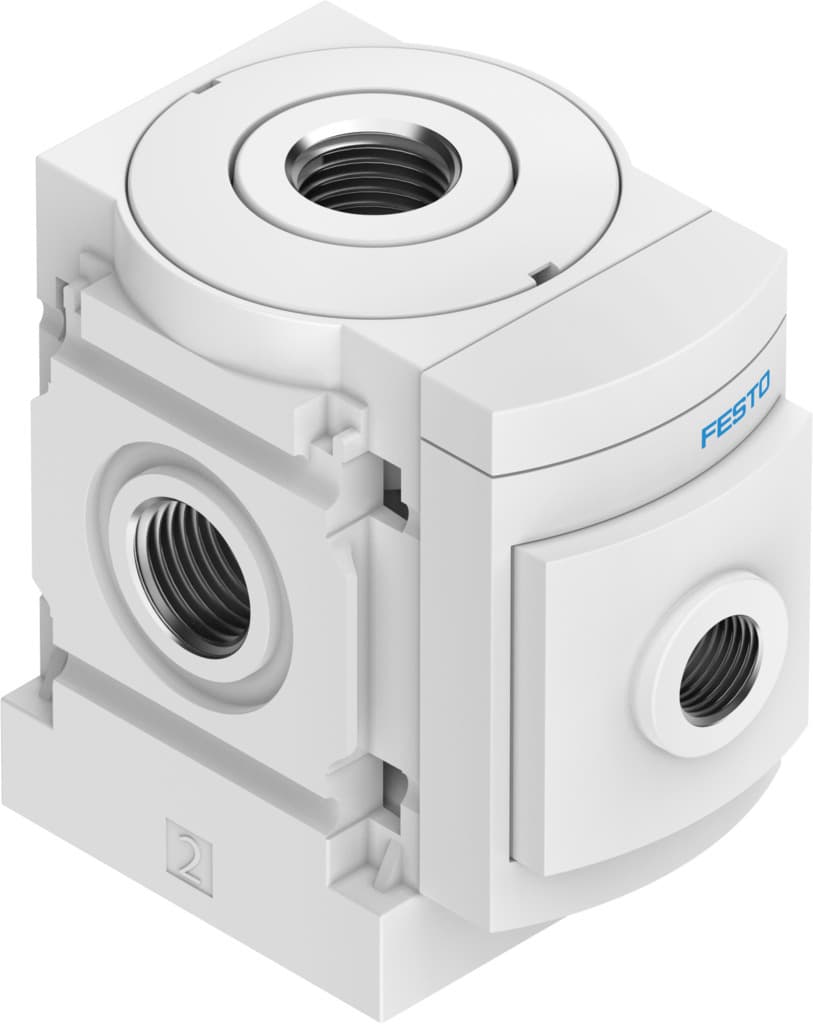

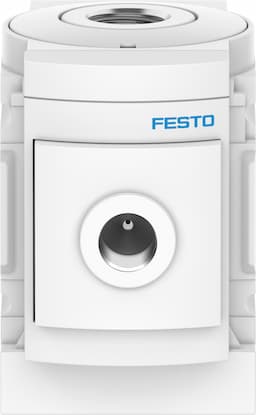

ms4-frm-1/4-a8-f1a
Product ID:197
Updated: 2026/4/3
Key Features
- 1Ensure efficient compressed air distribution with 1800 L/min flow. 2、Conform to ISO 1179-1 and ISO 228-1 standards for reliability. 3、Integrate easily into systems using standardized connections. 4、Select configurations with or without pressure switches. 5、Enhance system reliability with a compact, robust design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Application note | Foreign particles can remain stuck to the product or form during installation. Depending on the application, it may be necessary to purge the product with clean compressed air, clean it after installation and operate it with ducted exhaust air. | Mounting position | Any |
| Structural design | Branching module | Symbol | 00991510 |
| Operating pressure | 0bar 14bar | Standard nominal flow rate in main flow direction 1 -> 2 | 4600l/min |
| Standard nominal flow rate outlet at top | 1500l/min | Standard nominal flow rate outlet down | 1500l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 165g |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/4 |
| Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
| Manufacturer ID | 8183570 |
