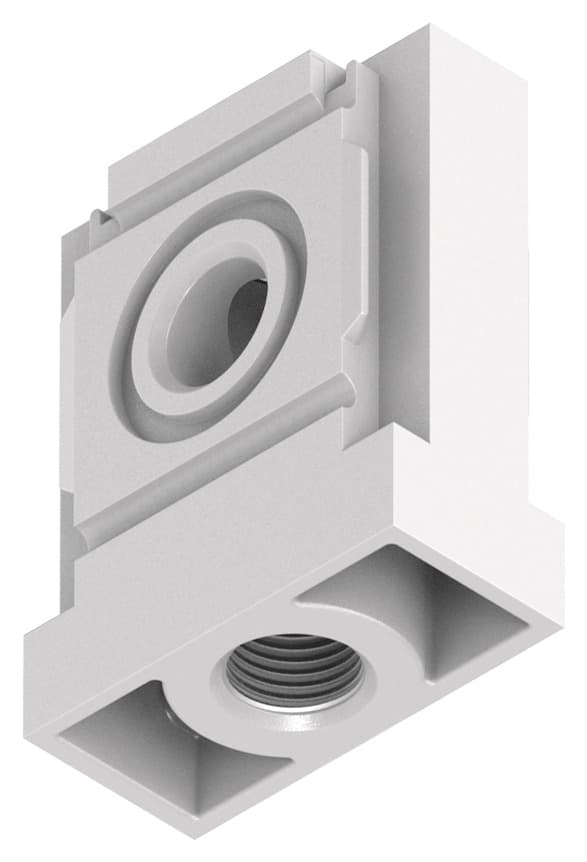

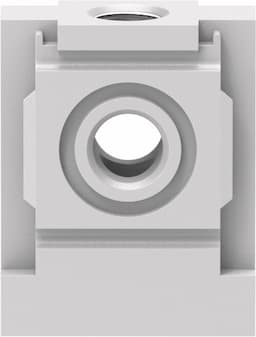

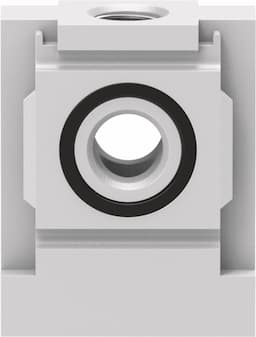

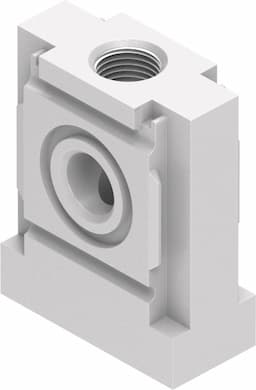

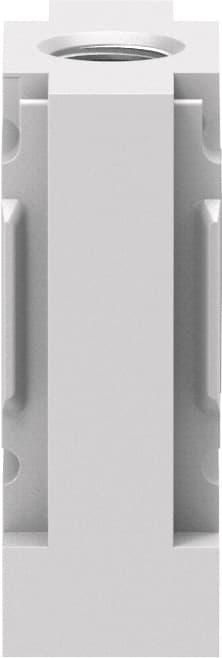

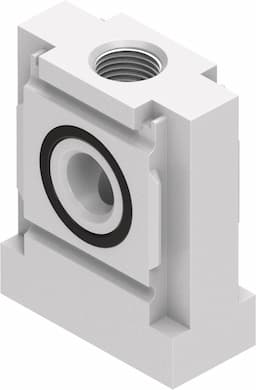

ms4-frm-frz
Product ID:11655
Updated: 2026/4/3
Key Features
- 1Distribute air efficiently with flow rates up to 4,050 l/min. 2、Construct the block from die-cast aluminum for moderate corrosion resistance. 3、Mount the MS4-FRM-FRZ in any position for flexible system design. 4、Ensure safety and compliance with UL recognition and RoHS materials. 5、Use it as a branching module or adapter between pressure regulators.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Structural design | Branching module |
| Symbol | 00991510 | Operating pressure | 0bar 14bar |
| Standard nominal flow rate in main flow direction 1 -> 2 | 4050l/min | Standard nominal flow rate outlet at top | 3250l/min |
| Standard nominal flow rate outlet down | 2900l/min | Certification | c UL us - Recognized (OL) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 60g |
| Pneumatic connection 3 | G1/4 | Pneumatic connection 4 | G1/4 |
| Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
| Manufacturer ID | 549336 |
Specifications may be subject to change without notice
