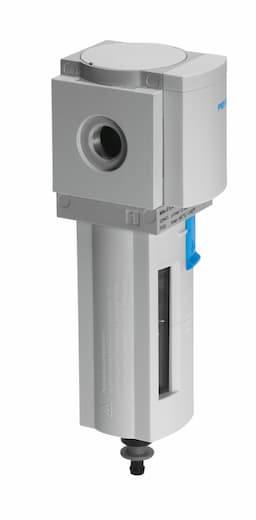

ms4-lf-1/8-erm
Product ID:9161
Updated: 2026/4/3
Key Features
- 1Ensure high-quality air filtration with a 40μm filter size. 2、Remove condensate easily via the manual drain. 3、Integrate seamlessly with its compact, space-saving design. 4、Apply across diverse industrial automation applications. 5、Rely on durable aluminum housing and NBR seals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Mounting position | Vertical +/- 5° | Grade of filtration | 40μm |
| Condensate drain | Manually rotating | Structural design | Sinter filter with centrifugal separator |
| Bowl guard | Plastic bowl guard | Degree of condensate separation | 75% |
| Symbol | 00991519 | Operating pressure | 0bar 14bar |
| Standard nominal flow rate | 1100l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:9:-] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:8:4] | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Pore size | 40μm |
| Product weight | 189g | Type of mounting | Optionally: Line installation With accessories |
| Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | G1/8 |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Seals material | NBR | Compressed air filter material | PE |
| Housing material | Die-cast aluminum | Material of bowl | PC |
| Separating disc material | POM | Manufacturer ID | 529407 |
Specifications may be subject to change without notice
