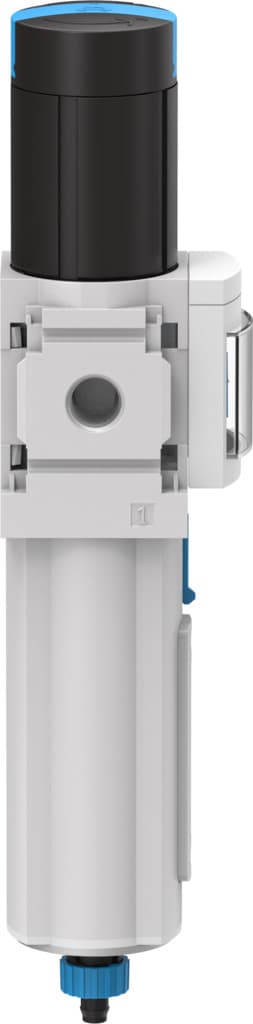

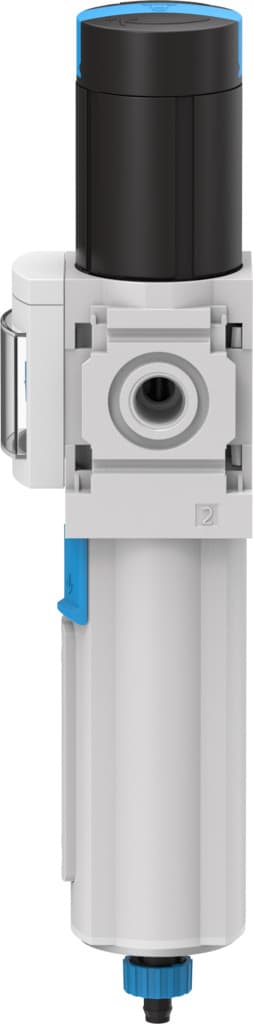

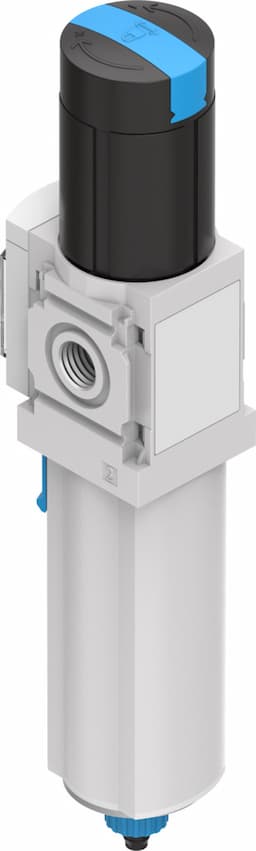

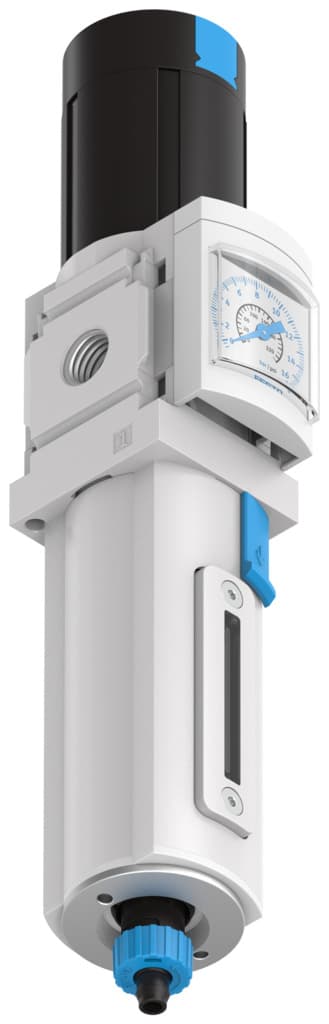

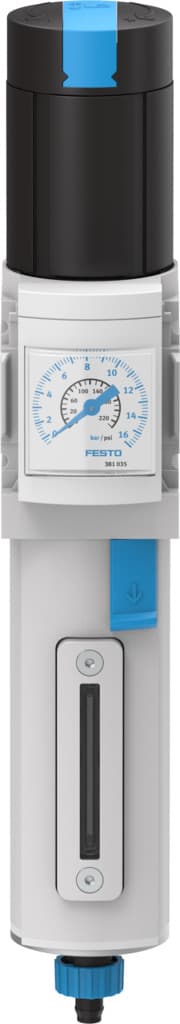

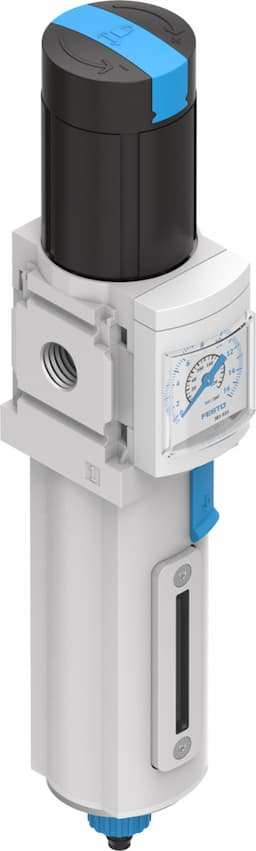

ms4-lfr-1/4-d7-eum-as
Product ID:9897
Updated: 2026/4/3
Key Features
- 1Ensure clean compressed air by filtering oil and dirt with 40 μm grade. 2、Adjust installation easily with a vertical mount and +/-5° angle. 3、Actuate simply using the rotary knob with a positive detent. 4、Withstand temperature fluctuations for consistent, reliable performance. 5、Rely on tested vibration resistance meeting EN 60068-2-6 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Vertical +/- 5° |
| Grade of filtration | 40μm | Condensate drain | Manually rotating |
| Structural design | Filter regulator with pressure gauge | Max. condensate volume | 25ml |
| Controller function | Outlet pressure constant With secondary exhausting With return flow function | Bowl guard | Integrated as metal bowl guard |
| Degree of condensate separation | 75% | Symbol | 00991589 |
| Pressure gauge | with pressure gauge | Operating pressure | 0.8bar 14bar |
| Pressure regulation range | 0.5bar 12bar | Max. pressure hysteresis | 0.25bar |
| Standard nominal flow rate | 1500l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [7:4:4] | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Pore size | 40μm |
| Product weight | 475g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Material of operator panel | PA POM | Seals material | NBR |
| Compressed air filter material | PE | Housing material | Die-cast aluminum |
| Diaphragm material | NBR | Material of bowl | Die-cast aluminum Wrought aluminum alloy |
| Inspection window material | PA | Separating disc material | POM |
| Manufacturer ID | 535724 |
Specifications may be subject to change without notice
