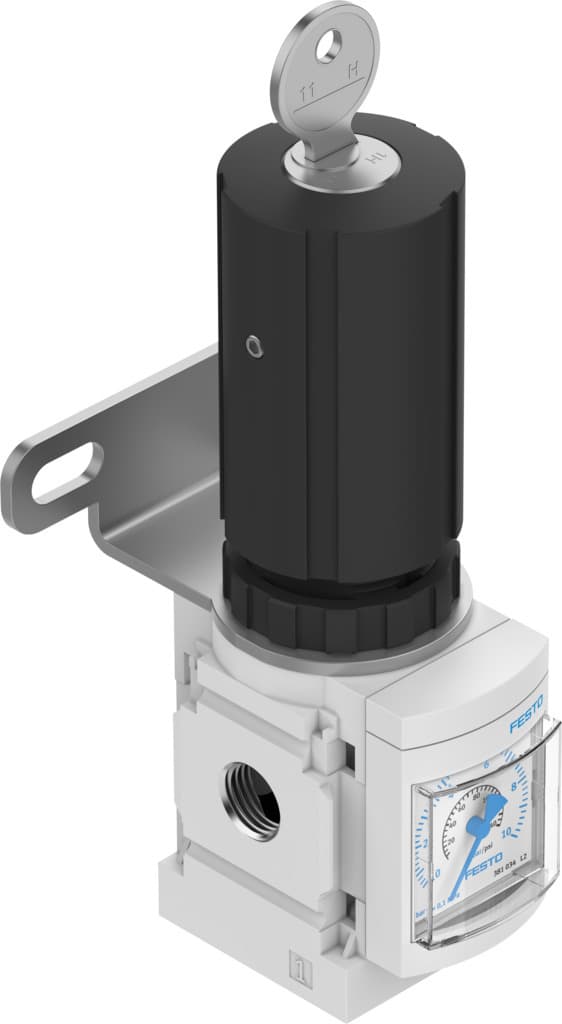

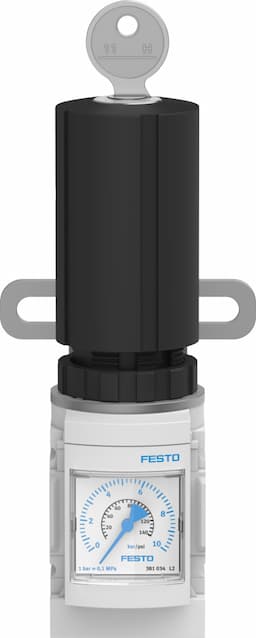

ms4-lr-1/4-d6-e11-wr
Product ID:170
Updated: 2026/7/4
Key Features
- 1Deliver up to 7,500 L/min flow for demanding applications.
- 2Maintain constant working pressure despite system fluctuations.
- 3Secure set values with the integrated lock (E11) feature.
- 4Install flexibly with various mounting options including WR bracket.
- 5Ensure wide compatibility via ISO 1179-1 and ISO 228-1 standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Actuator lock | Rotary knob with integrated lock | Mounting position | Any |
| Structural design | Directly controlled diaphragm regulator | Controller function | Outlet pressure constant With secondary exhausting With return flow function |
| Symbol | 00991558 | Pressure gauge | with pressure gauge |
| Operating pressure | 0.8bar 14bar | Pressure regulation range | 0.3bar 7bar |
| Max. pressure hysteresis | 3.625psi | Standard nominal flow rate | 1800l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Product weight | 350g | Type of mounting | Optionally: Front panel mounting Line installation With accessories |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Note on materials | RoHS-compliant | Material of sub-base | Die-cast aluminum |
| Material of operator panel | Aluminum | Seals material | NBR |
| Housing material | Die-cast aluminum | Diaphragm material | NBR |
| Manufacturer ID | 8190238 |
Specifications may be subject to change without notice
