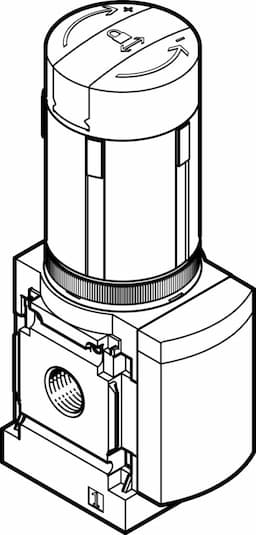

ms4-lrb-1/4-d6-vs-as-z
Product ID:9190
Updated: 2026/7/4
Key Features
- 1Integrate seamlessly with Festo's pneumatic and electrical systems.
- 2Utilize IO-Link technology for simple, economical sensor communication.
- 3Ensure reliable performance with minimal hysteresis and pressure compensation.
- 4Benefit from standardized dimensions for easy system integration.
- 5Rely on ISO-certified manufacturing for durable, long-term operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Actuator lock | Rotary knob with detent can be closed with accessories | Mounting position | Any |
| Structural design | Directly controlled diaphragm regulator with continuous compressed air supply | Controller function | Outlet pressure constant With primary pressure compensation With secondary exhausting With return flow function |
| Symbol | 00995252 | Operating pressure | 0.8bar 14bar |
| Pressure regulation range | 0.3bar 7bar | Max. pressure hysteresis | 0.25bar |
| Standard nominal flow rate | 1700l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | Product weight | 222g |
| Type of mounting | Optionally: Front panel mounting Line installation With accessories | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Note on materials | RoHS-compliant |
| Material of sub-base | Die-cast aluminum | Material of operator panel | PA POM |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Diaphragm material | NBR | Manufacturer ID | 529482 |
Specifications may be subject to change without notice
