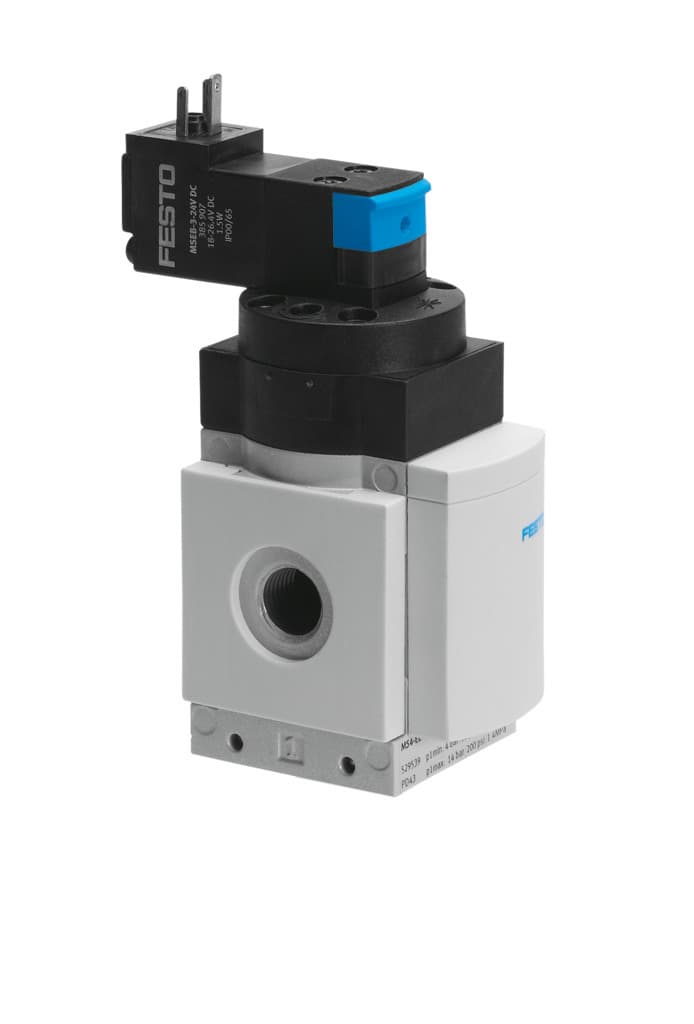

ms4n-de
Product ID:9099
Updated: 2026/4/3
Key Features
- 1Control pressure build-up duration for smooth pneumatic system operation. 2、Provide CRC 2 corrosion resistance for use with coolants and lubricants. 3、Ensure consistent one-way airflow with its non-reversible flow design. 4、Feature a 2/2-way valve function for adjustable switching positions. 5、Support multiple coil voltages and operating pressures for versatility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Actuation type | Electrical | Mounting position | Any |
| Manual override | Detenting Non-detenting | Structural design | Piston seat |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Valve function | 2/2 | Pressure gauge | G1/4 prepared G1/8 prepared with pressure sensor with pressure gauge |
| Switching position indication | with accessories | Operating pressure | 4bar 14bar |
| Standard nominal flow rate | 1000l/min 2000l/min | Duty cycle | 100% |
| Certification | c UL us - Recognized (OL) | KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 60°C |
| Degree of protection | IP65 | Ambient temperature | -10°C 60°C |
| Product weight | 263g | Signal status display | With accessories |
| Type of mounting | Optionally: Line installation With accessories | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 527714 |
Specifications may be subject to change without notice
