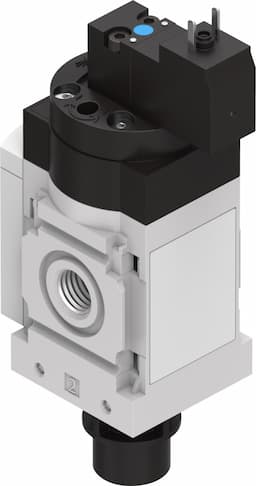

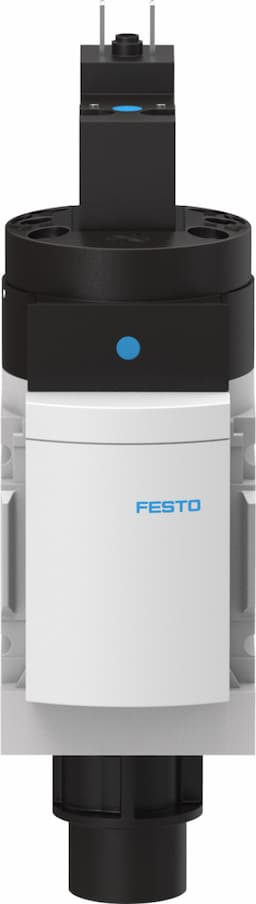

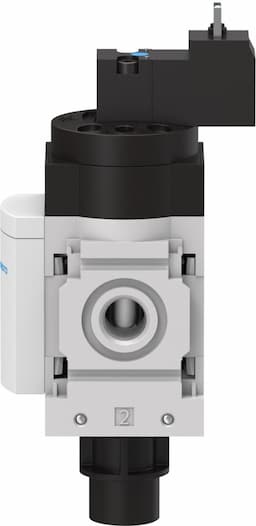

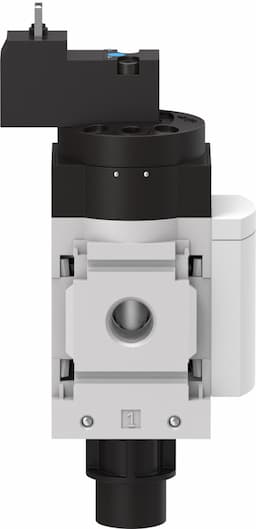

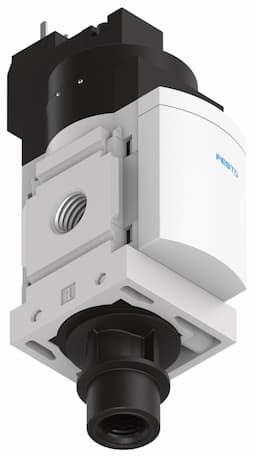

ms4n-ee
Product ID:9095
Updated: 2026/7/4
Key Features
- 1Pressurize and vent pneumatic installations reliably.
- 2Reposition the solenoid actuator by 180° for flexible mounting.
- 3Achieve CRC 2 corrosion resistance with filtered air.
- 4Operate across 59-206 PSI and multiple voltage ranges.
- 5Monitor conditions with an optional pressure sensor display.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Piston gate valve | Actuation type | Electrical |
| Exhaust air function | Without flow control option | Manual override | Detenting None Non-detenting |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Valve function | 3/2, closed, monostable | Pressure gauge | G1/4 prepared G1/8 prepared with pressure sensor with pressure gauge |
| Operating pressure | 4bar 14bar | Lap | Overlap |
| Standard nominal flow rate | 1000l/min 2000l/min | Duty cycle | 100% |
| Coil characteristics | 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA 24 V DC: 1.8 W | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Degree of protection | IP65 |
| Ambient temperature | -10°C 60°C | Certification | c UL us - Recognized (OL) |
| KC characters | KC EMC | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | For use in the food industry | See supplementary material information |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
| Flow direction | Non-reversible | Product weight | 273g |
| Pneumatic connection 3 | G1/4 | Pilot air supply port | Internal |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 527710 |
Specifications may be subject to change without notice
