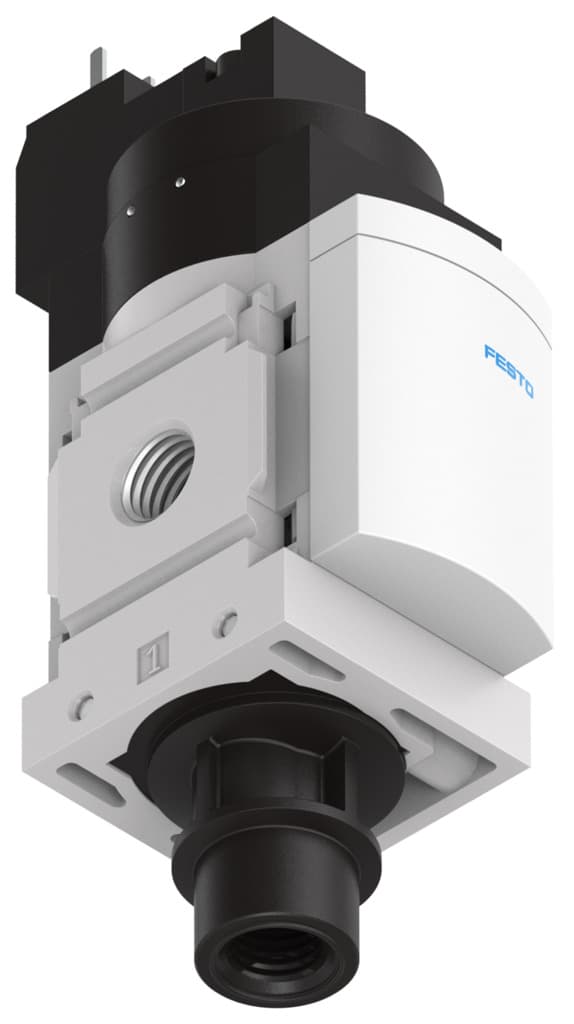

ms4n-ee-1/4-v230
Product ID:9513
Updated: 2026/7/4
Key Features
- 1Ensure reliable pneumatic control with non-reversible flow direction.
- 2Feature moderate corrosion resistance (CRC 2) per Festo standard 940 070.
- 3Operate efficiently within a 4 to 10 bar pressure range.
- 4Provide precise control via mechanical spring reset and direct piloting.
- 5Withstand -10 to 60 °C with a 0.35 million cycle service life.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Piston gate valve | Actuation type | Electrical |
| Exhaust air function | Without flow control option | Manual override | Detenting Non-detenting |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Symbol | 00991008 | Valve function | 3/2, closed, monostable |
| Operating pressure | 4bar 14bar | Lap | Overlap |
| C value | 9.5l/sbar | b-value | 0.44 |
| Standard nominal flow rate | 2000l/min | Duty cycle | 100% |
| Coil characteristics | 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 60°C | Degree of protection | IP65 |
| Ambient temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
| Flow direction | Non-reversible | Product weight | 273g |
| Pneumatic connection 1 | 1/4 NPT | Pneumatic connection 2 | 1/4 NPT |
| Pneumatic connection 3 | G1/4 | Pilot air supply port | Internal |
| Electrical connection | Form C Plug as per DIN EN 175301-803 Rectangular design | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 532087 |
Specifications may be subject to change without notice
