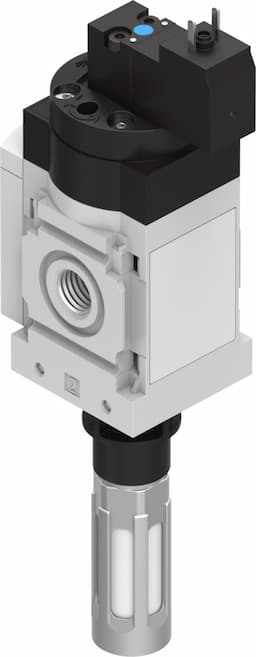

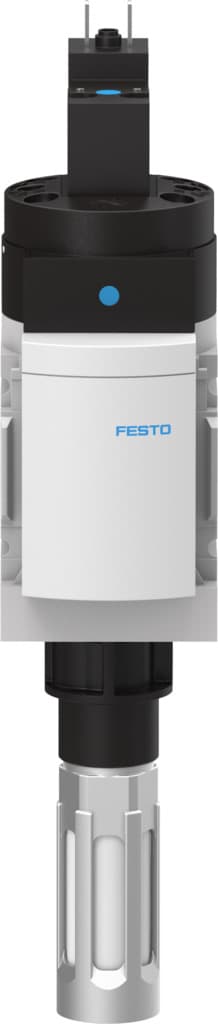

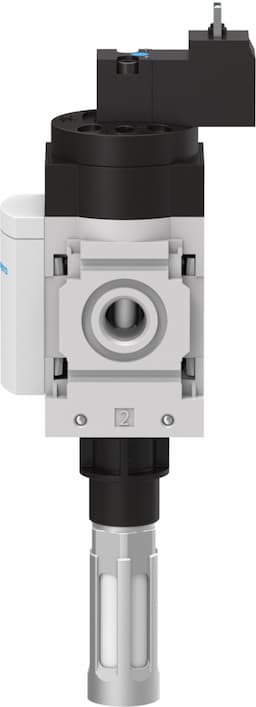

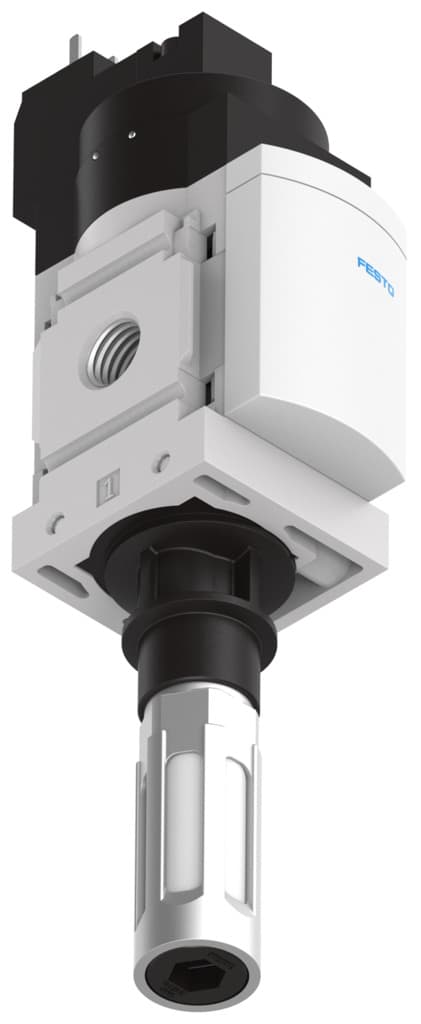

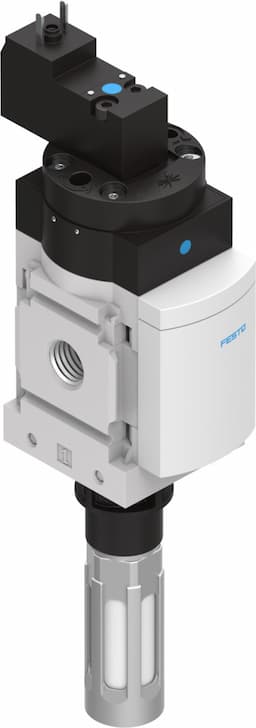

ms4n-ee-1/8-v230-s
Product ID:10382
Updated: 2026/4/3
Key Features
- 1Ensure reliable on/off control with a piston gate design. 2、Achieve 350,000 cycles for extended service life. 3、Withstand vibration and shock for consistent performance. 4、Integrate easily with Festo automation solutions. 5、Reduce downtime with available stock and fast shipping.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Piston gate valve | Actuation type | Electrical |
| Exhaust air function | Without flow control option | Manual override | Detenting Non-detenting |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Symbol | 00991008 | Valve function | 3/2, closed, monostable |
| Operating pressure | 4bar 10bar | Lap | Overlap |
| C value | 4.5l/sbar | b-value | 0.5 |
| Standard nominal flow rate | 1000l/min | Duty cycle | 100% |
| Coil characteristics | 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 | Ambient temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Type of mounting | Optionally: Line installation With accessories |
| Mounting position | Any | Flow direction | Non-reversible |
| Product weight | 289g | Pneumatic connection 1 | 1/8 NPT |
| Pneumatic connection 2 | 1/8 NPT | Pneumatic connection 3 | G1/4 |
| Pilot air supply port | Internal | Electrical connection | Form C Plug as per DIN EN 175301-803 Rectangular design |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 538757 |
Specifications may be subject to change without notice
