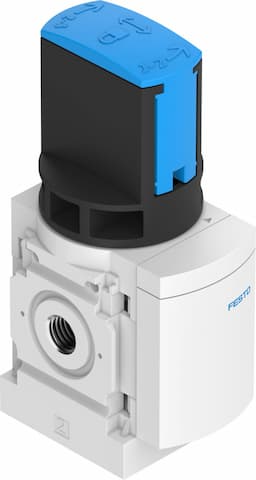

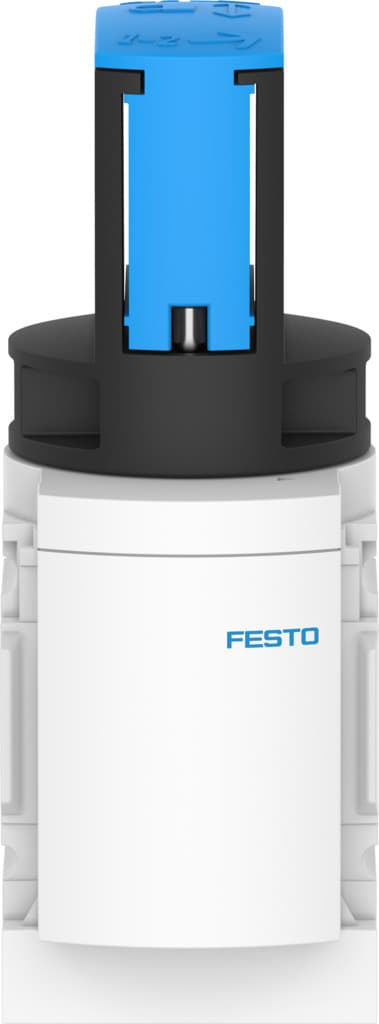

ms4n-em1-1/8-z
Product ID:10646
Updated: 2026/4/3
Key Features
- 1Ensure reliable 3/2-way manual control for pneumatic pressurization. 2、Handle up to 14-bar operating pressure for versatile industrial use. 3、Reduce noise with the integrated silencer for a quieter workspace. 4、Achieve 0.025 million cycles for safety-related applications per ISO 13849-1. 5、Connect easily with 1/8NPT ports for compressed air systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Rotary gate valve | Actuation type | Manual |
| Exhaust air function | Without flow control option | Type of control | Direct |
| Symbol | 00991670 | Valve function | 3/2, bistable |
| Operating pressure | 0bar 14bar | C value | 4.6l/sbar |
| b-value | 0.51 | Standard nominal flow rate | 1200l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
| Ambient temperature | -10°C 60°C | For use in the food industry | See supplementary material information |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
| Flow direction | Non-reversible | Product weight | 190g |
| Pneumatic connection 1 | 1/8 NPT | Pneumatic connection 2 | 1/8 NPT |
| Pneumatic connection 3 | 1/4 NPT | Seals material | TPE-U(PU) |
| Housing material | Die-cast aluminum | Manufacturer ID | 541287 |
Specifications may be subject to change without notice
