ms4-wp-f1a
Product ID:291
Updated: 2026/7/4
Key Features

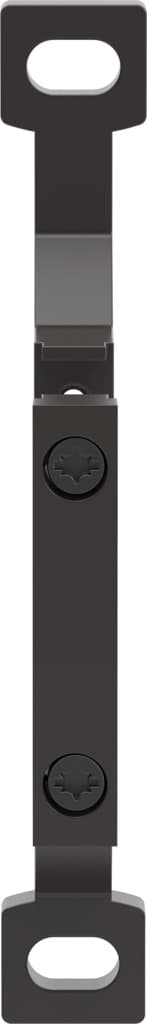

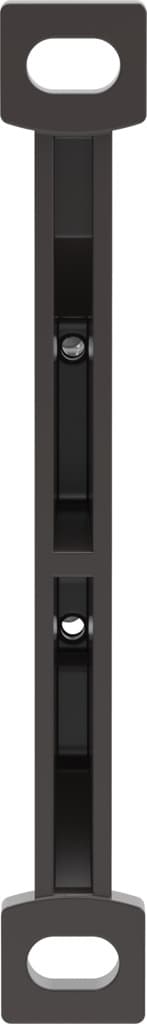

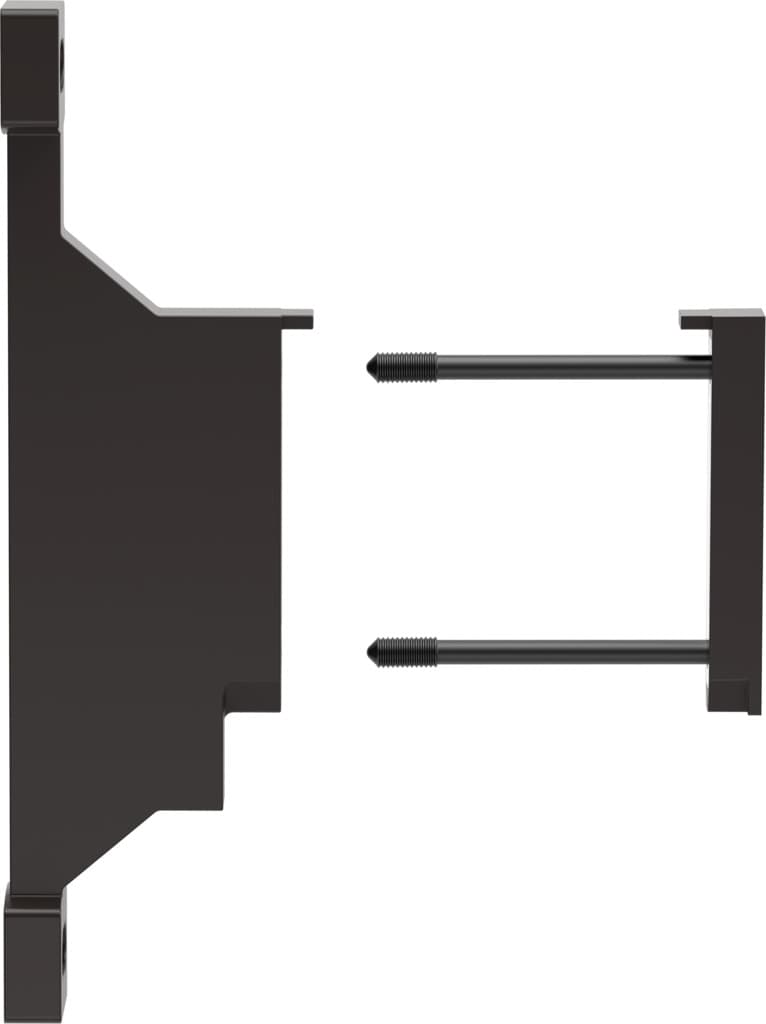

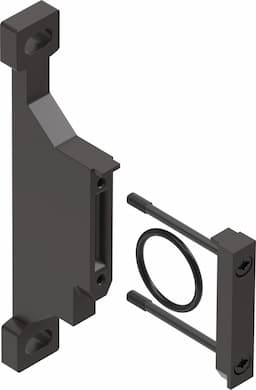

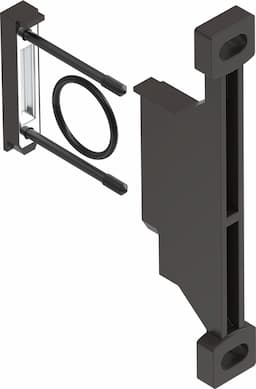

- 1Secure pneumatic components efficiently with the MS4-WP-F1A bracket.
- 2Integrate into the high-quality Festo MS series for diverse applications.
- 3Resist moderate corrosion with CRC 2 and LABS/PWIS conformity.
- 4Connect filters, regulators, and lubricators for flexible system builds.
- 5Meet ISO 1179-1 and ISO 228-1 standards for global reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 4 | Series | MS |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Temperature of medium | -10°C 60°C |
| Product weight | 39g | Note on materials | RoHS-compliant |
| Seals material | NBR | Module connector material | POM High-alloy stainless steel |
| Material of screws | High-alloy stainless steel | Bracket material | Die-cast aluminum |
| Manufacturer ID | 8176694 |
Specifications may be subject to change without notice
