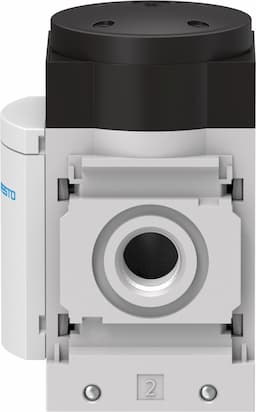

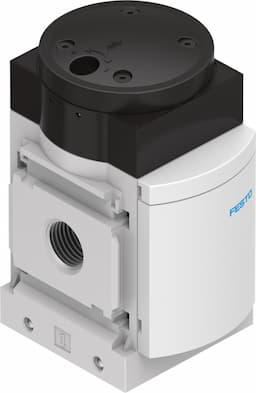

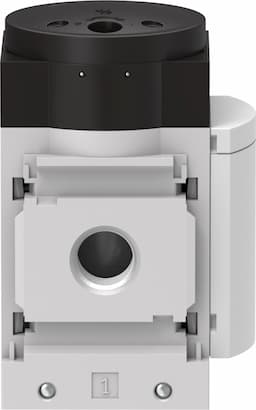

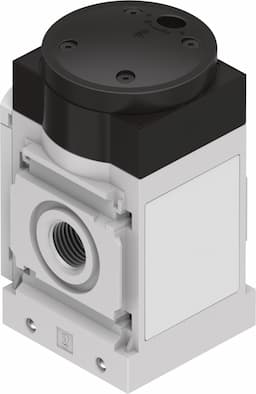

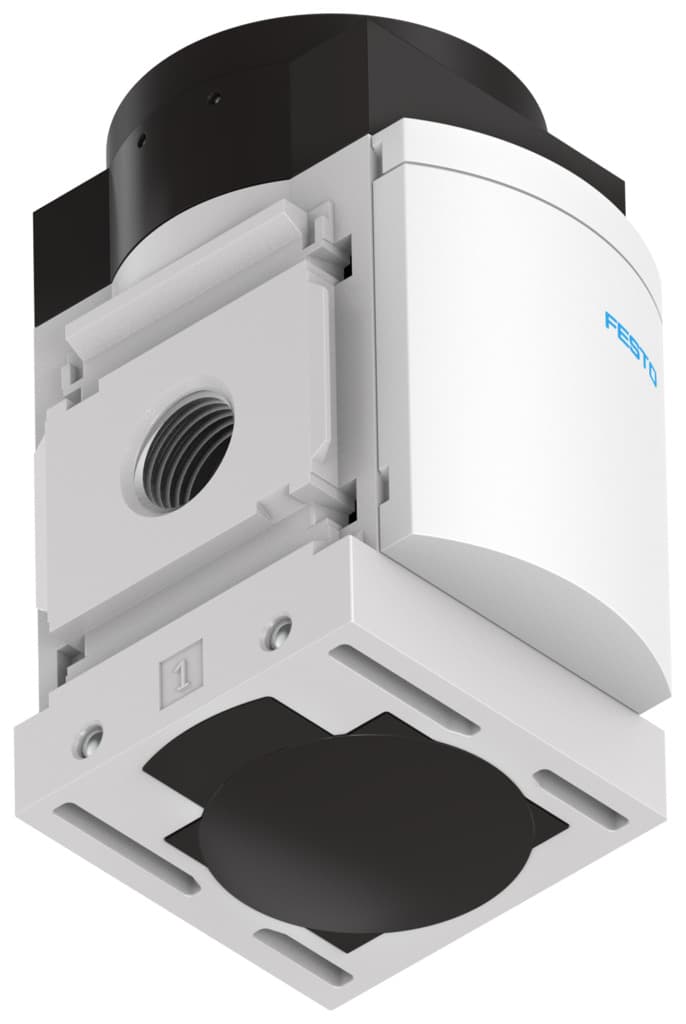

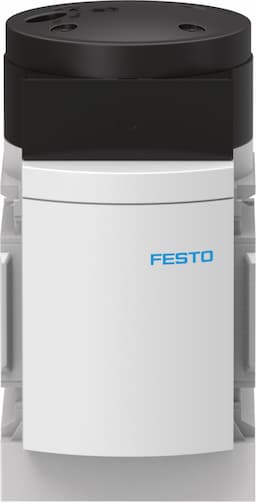

ms6-dl
Product ID:9075
Updated: 2026/4/3
Key Features
- 1Ensure smooth pneumatic starts to minimize component wear and tear. 2、Handle high-flow applications with a 6450 L/min nominal flow rate. 3、Utilize durable die-cast aluminum construction for corrosion resistance. 4、Precisely control operating pressure for versatile application use. 5、Integrate easily via standard G1/2 and G1/4 pneumatic connections.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Exhaust air function | With flow control option | Actuation type | Pneumatic |
| Mounting position | Any | Manual override | None |
| Structural design | Piston seat | Reset method | Mechanical spring |
| Type of control | Direct | Pilot air supply port | External |
| Flow direction | Non-reversible | Valve function | 2/2 |
| Pressure gauge | with pressure sensor | Operating pressure | 4bar 18bar |
| Standard nominal flow rate | 2600l/min 6450l/min | Certification | c UL us - Recognized (OL) |
| CE marking (see declaration of conformity) | as per EU explosion protection directive (ATEX) | UKCA marking (see declaration of conformity) | acc. to UK EX instructions |
| Explosion protection certification outside the EU | EPL Db (GB) EPL Gb (GB) | Explosion prevention and protection | Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX) |
| ATEX category gas | II 2G | ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T6 Gb X | Type of (ignition) protection for dust | Ex h IIIC T60°C Db X |
| Explosive ambient temperature | -10°C <= Ta <= +60°C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | For use in the food industry | See supplementary material information |
| Temperature of medium | -10°C 60°C | Ambient temperature | -10°C 60°C |
| Product weight | 650g | Type of mounting | Optionally: Line installation With accessories |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 527684 |
Specifications may be subject to change without notice
