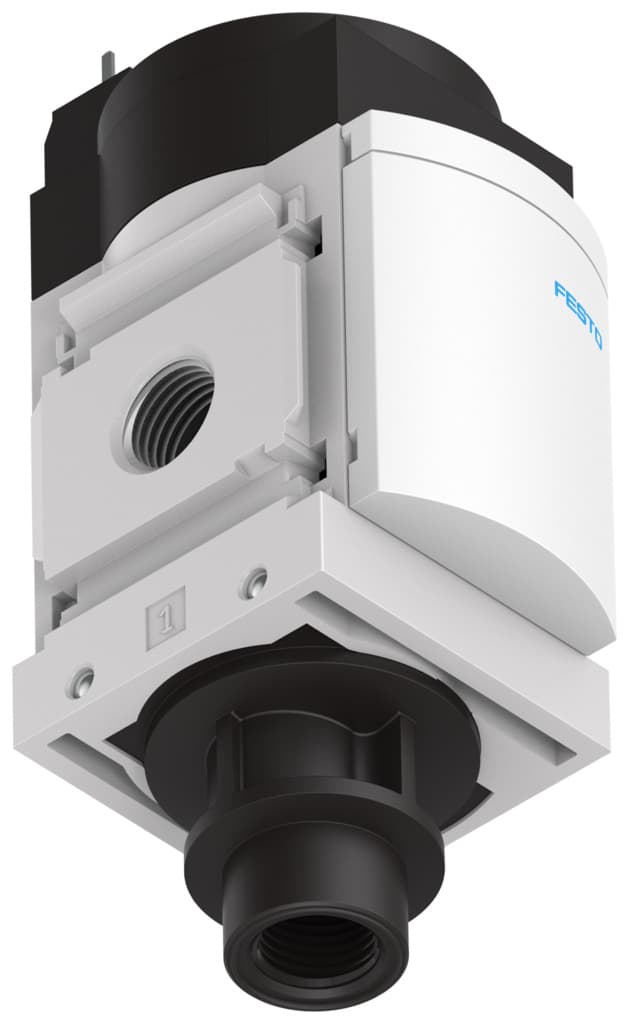

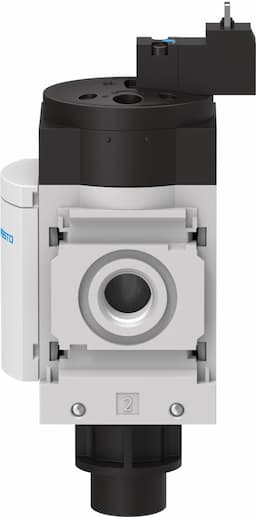

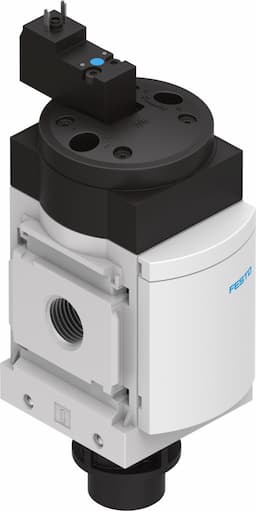

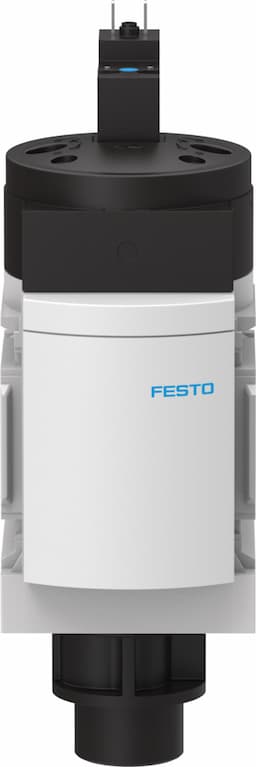

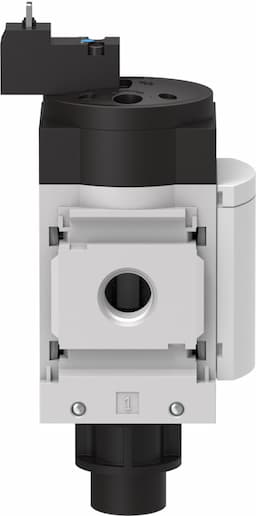

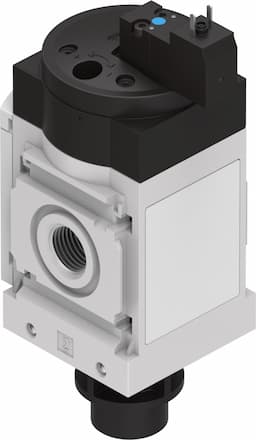

ms6-ee
Product ID:9073
Updated: 2026/4/3
Key Features
- 1Control compressed air precisely with an electrically actuated 3/2-way valve. 2、Achieve a high nominal flow rate of 7000 l/min for demanding applications. 3、Ensure durability with a robust PA-reinforced, corrosion-resistant housing. 4、Operate reliably across a wide temperature range from -10°C to 60°C. 5、Monitor system status in real-time with an integrated pressure sensor and display.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Piston gate valve | Actuation type | Electrical |
| Exhaust air function | Without flow control option | Manual override | Detenting None Non-detenting |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Valve function | 3/2, closed, monostable | Pressure gauge | G1/4 prepared with pressure sensor with pressure gauge |
| Operating pressure | 4bar 18bar | Standard nominal flow rate | 2600l/min 7000l/min |
| Duty cycle | 100% | Coil characteristics | 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA 230 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA 24 V DC: 1.5 W 24 V DC: 2.5 W |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Temperature of medium | -10°C 60°C |
| Degree of protection | IP65 | Ambient temperature | -10°C 60°C |
| Certification | c UL us - Recognized (OL) | KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive as per EU explosion protection directive (ATEX) As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC acc. to UK EX instructions To UK RoHS instructions To UK instructions for electrical equipment |
| Explosion protection certification outside the EU | EPL Dc (GB) EPL Gc (GB) | Explosion prevention and protection | Zone 2 (ATEX) Zone 2 (UKEX) Zone 22 (ATEX) Zone 22 (UKEX) |
| ATEX category gas | II 3G | ATEX category for dust | II 3D |
| Type of ignition protection for gas | Ex nA IIC T4 X Gc | Type of (ignition) protection for dust | Ex tc IIIC T105°C IP65 Dc X |
| Explosive ambient temperature | -10°C <= Ta <= +60°C | For use in the food industry | See supplementary material information |
| Type of mounting | Optionally: Line installation With accessories | Mounting position | Any |
| Flow direction | Non-reversible | Product weight | 740g |
| Pneumatic connection 3 | G1/2 | Pilot air supply port | Internal |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 527682 |
Specifications may be subject to change without notice
