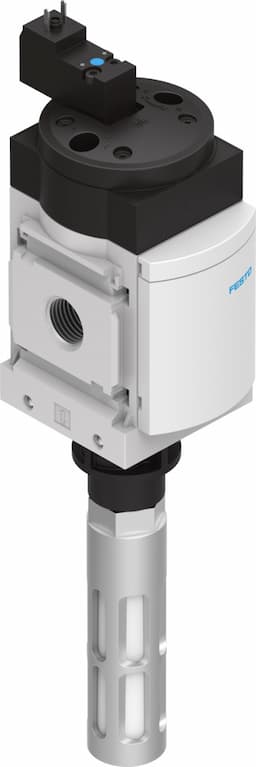

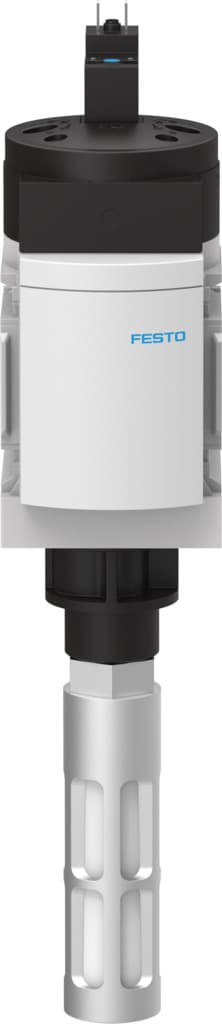

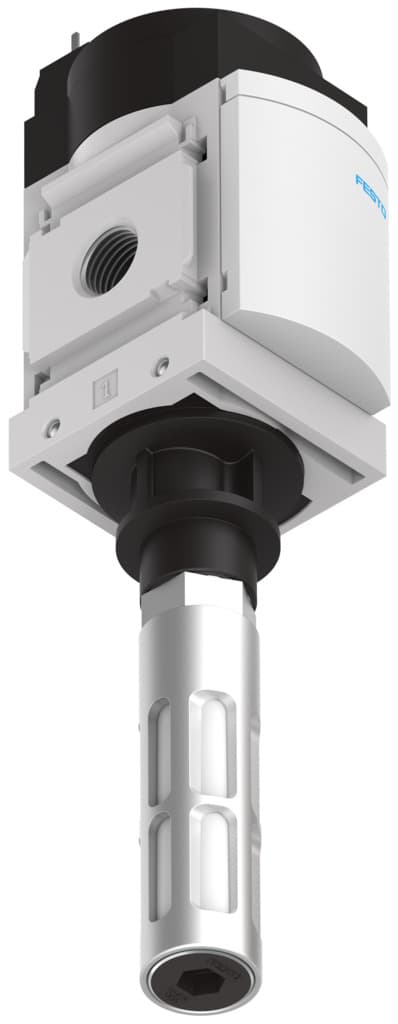

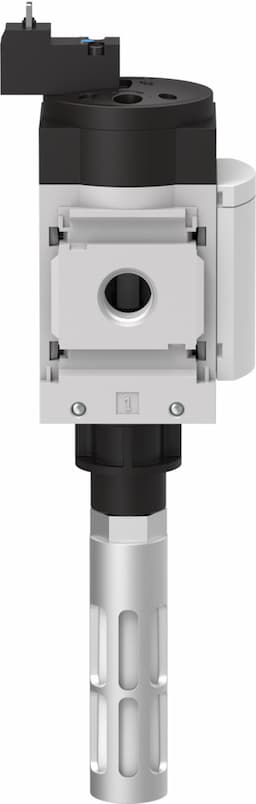

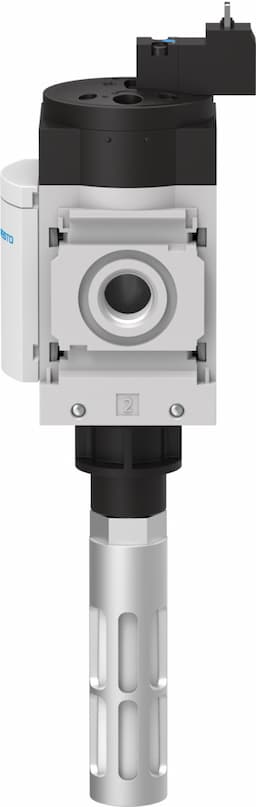

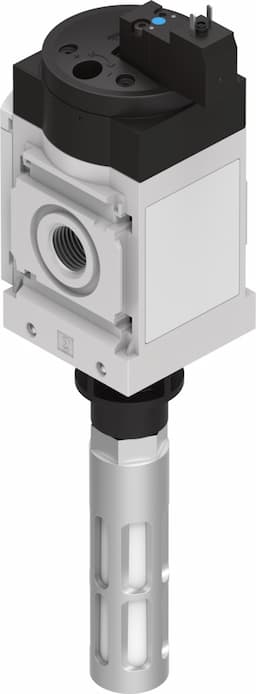

ms6-ee-1/2-v110-s
Product ID:10378
Updated: 2026/4/3
Key Features
- 1Ensure reliable compressed air preparation for diverse industrial applications. 2、Provide precise electric actuation to minimize manual intervention. 3、Reduce noise levels with a built-in silencer for a better work environment. 4、Deliver high reliability with a piloted piston spool resistant to vibration. 5、Simplify installation with a standardized, easy-to-connect interface design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Structural design | Piston gate valve | Actuation type | Electrical |
| Exhaust air function | Without flow control option | Manual override | Detenting Non-detenting |
| Reset method | Mechanical spring | Type of control | Pilot-controlled |
| Symbol | 00991008 | Valve function | 3/2, closed, monostable |
| Operating pressure | 4bar 10bar | C value | 29l/sbar |
| b-value | 0.4 | Standard nominal flow rate | 7000l/min |
| Duty cycle | 100% | Coil characteristics | 110 V AC: 50/60 Hz, initial power 3.0 VA, holding power 2.4 VA |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Note on materials | RoHS-compliant | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 | Ambient temperature | -10°C 60°C |
| For use in the food industry | See supplementary material information | Type of mounting | Optionally: Line installation With accessories |
| Mounting position | Any | Flow direction | Non-reversible |
| Product weight | 816g | Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 | Pneumatic connection 3 | G1/2 |
| Pilot air supply port | Internal | Electrical connection | Form C Plug as per DIN EN 175301-803 Rectangular design |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 538731 |
Specifications may be subject to change without notice
